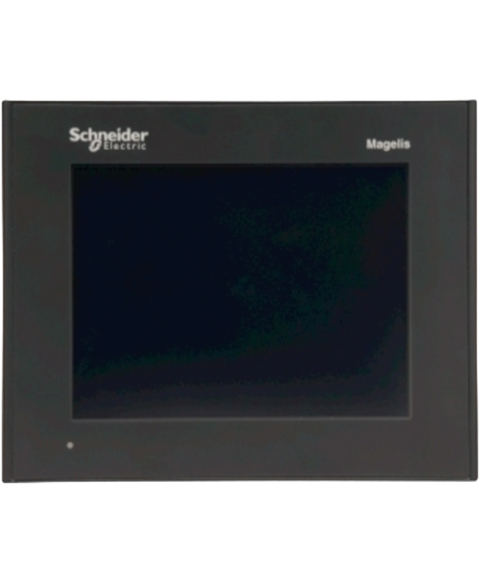

Schneider Electric XBTG2110
The XBTG2110 touchscreen panel from Schneider Electric's MAGELiS series features a compact 5.7-inch display. With a resolution of 320 x 240 pixels, it supports blue and white colors along with 16 levels of gray for versatile graphical representation.
This Schneider Electric XBTG2110 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26805754818.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Type | Touchscreen Panel |
| Product Line | MAGELiS |
| Part Number | XBTG2110 |
| Weight | 1.06 lbs (0.48 kg) |
| Display Size | 5.7 inches |
| Display Resolution | 320 x 240 pixels (QVGA) |
| Display Colors | Blue and white with 16 levels of gray |
| Memory | 128 kB SRAM with lithium battery backup; 16 MB flash EPROM for application storage |
| Communication Ports | COM1: Male SUB-D 9 connector (RS232C/RS422/RS485); COM2: RJ45 connector (RS485); USB Type A master port (V1.1) |
| Power Supply | 24 V DC |
| Voltage Limits | 19.2 V to 28.8 V |
| Inrush Current | 30 A |
| Power Consumption | 18 W |
| Mounting | Flush mounting |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 85% without condensation |
| Environmental Ratings | IP20 (rear panel); IP65 (front panel) |
| Brand | Schneider Electric |
