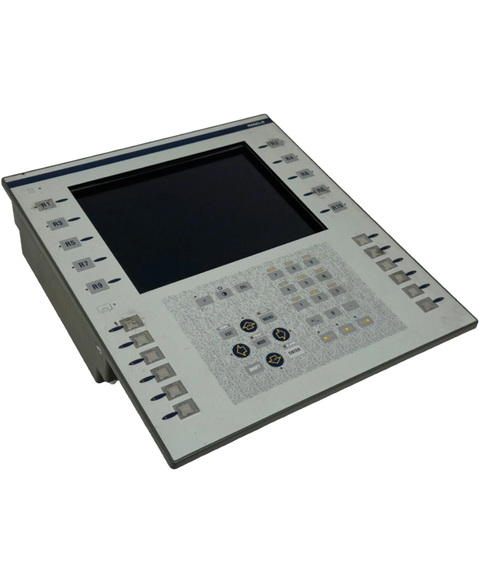

Schneider Electric XBTF023110
The XBTF023110 from Schneider Electric is a graphic operator terminal equipped with a keypad and a 9.5-inch monochrome display. This unit achieves a resolution of 320 x 240 pixels and features backlighting with 16 gray shades for visual clarity. Designed for versatile communication, it supports RS232, RS485, and RS422 protocols.
This Schneider Electric XBTF023110 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26805673579.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Type | Graphic Operator Terminal (Keypad) |
| Product Line | MAGELiS |
| Part Number | XBTF023110 |
| Weight | 2.50 lbs (1.13 kg) |
| Display Size | 9.5-inch |
| Display Type | Monochrome, backlit, 16 grey shades |
| Resolution | 320 x 240 pixels |
| Power Consumption | 35 W |
| Voltage | 24 VDC (18–30 V range) |
| Communication | RS232, RS485, RS422 |
| Alarm Relay | 0.5 A, 24 V, normally open |
| RAM | 2.5 MB |
| Storage | 8 MB PCMCIA (expandable to 16 MB) |
| Page Capacity | Up to 450 pages |
| Mounting | Flush, spring clips, panel 1.6–6 mm |
| Protection | Front: IP65, Rear: IP20 |
| Protocols | Supports various industrial PLC protocols |
| Brand | Schneider Electric |
