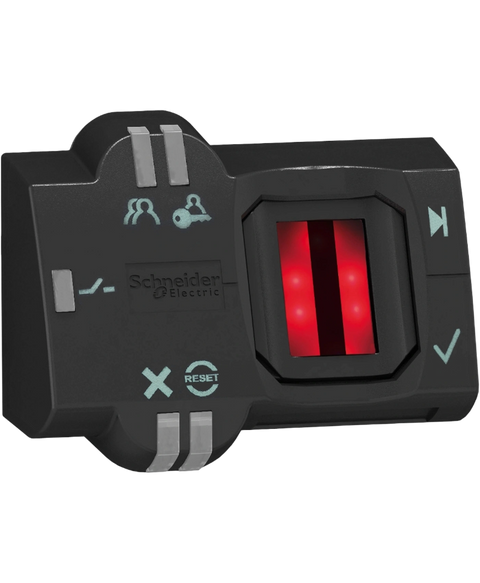

Schneider Electric XB5S2B2L2
Biometric switch, switching current max: 200mA, rated supply voltage: 24VDC, function of module: monostable, output type: pnp, operator type: momentary, memory capacity: 200 users, connection method: cable
This Schneider Electric XB5S2B2L2 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controls > Pushbuttons pilot lights range and is referenced internally as PartLogic SKU PL26805640090.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product or component type | Biometric switch |
| Product specific application | Industrial machines | Materials handling |
| Device short name | XB5S |
| Bezel material | Dark grey plastic |
| Mounting diameter | 22 mm |
| Output type | PNP |
| Sale per indivisible quantity | 1 |
| IP degree of protection | IP20 (rear face) conforming to IEC 60529 | IP65 (front face) conforming to IEC 60529 |
| Type of operator | Momentary |
| Operator profile | fingerprint reader |
| Connections - terminals | 1 pre-wired cable, 3 x 0.34 mm² |
| Memory usage | 200 users with up to 2 fingerprints per user |
| Enclosure material | Polyamide PA66 |
| Cable insulation material | PvR |
| Operating position | Flat surface installation | Horizontal position | Vertical surface installation |
| Function of module | Monostable |
| Net weight | 0.17 kg |
| Marking | CE |
| Local signalling | 1 LED (green) for output state indicator | 1 LED (orange) for administrator's registration mode | 1 LED (orange) for operator's registration mode | 1 LED (red) for error | 1 LED (red) for reset |
| Short-circuit protection | 250 mA external fuse type gG |
| [Us] rated supply voltage | 24 V DC |
| Electrical connection | free wire ends with 3 wires of 2 m |
| Supply voltage limits | 20…30 V DC |
| Protection type | Overload protection | Short-circuit | Reverse polarity |
| Maximum switching current | 200 mA |
| [Ures] residual voltage | 1 V closed state |
| Current consumption | <= 70 mA no-load |
| Maximum delay first up | 3 s + 0.5 ms per user registered |
| Maximum delay recovery | 1.5 s |
| Maximum delay response | 1.5 s |
| Range of product | Harmony XB5S |
| Ambient air temperature for storage | -25…70 °C |
| Ambient air temperature for operation | -5…50 °C |
| NEMA degree of protection | NEMA 12 |
| Standards | IEC 61000-6-4 | IEC 61000-6-2 |
| Product certifications | UL | CSA |
| Vibration resistance | +/- 3 mm (f= 5…9 Hz) conforming to IEC 60068-2-6 | 1 gn (f= 9…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn 11 ms conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.500 cm |
| Package 1 Width | 9.500 cm |
| Package 1 Length | 18.500 cm |
| Package 1 Weight | 205.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.306 kg |
