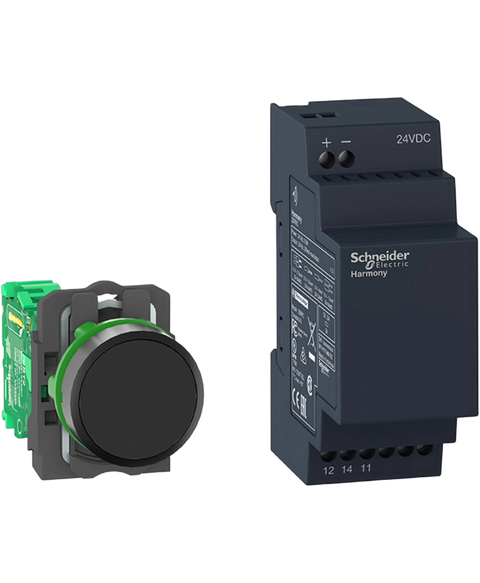

Schneider Electric XB5RFB01
Harmony XB5, Wireless push button and non-configurable receiver, plastic,22, with 1 black cap, 24 V DC
This Schneider Electric XB5RFB01 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controls > Pushbuttons pilot lights range and is referenced internally as PartLogic SKU PL26904214082.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony XB5R |
| Product or component type | Wireless and batteryless package |
| Device short name | XB5R |
| Head material | Plastic |
| frequency | 2405 MHz for transmitter | 2405 MHz for receiver |
| emission class | 5M00G7W |
| Antenna type | Omnidirectional |
| Control type | Wireless and batteryless push-button Ø 22 mm assembled on fixing collar |
| Type of receiver | Non-programmable receiver (1 relay) |
| [Us] rated supply voltage | 24 V DC |
| Kit composition | 1 transmitter | 1 set of caps | 1 receiver | 1 fixing collars | 1 diameter: 22 mm | 1 push-button head diameter: 22 mm |
| Communication port protocol | Zigbee conforming to IEEE 802.15.4 |
| Max power consumption in W | 1 mW |
| Number of channels | 1 |
| Modulation Technique | O-QPSK |
| Bandwidth | 5 MHz |
| Antenna gain | 0 dBi |
| Product certifications | UL | C-Tick | GOST | CSA | CCC |
| Marking | CE |
| Standards | IEC 60947-5-1 | CSA C22.2 No 14 | IEC 60947-1 | UL 508 |
| Radio agreement | SRRC | ICASA | RSS | ANATEL | FCC | ARIB T66 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.300 cm |
| Package 1 Width | 10.500 cm |
| Package 1 Length | 10.800 cm |
| Package 1 Weight | 195.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.666 kg |
