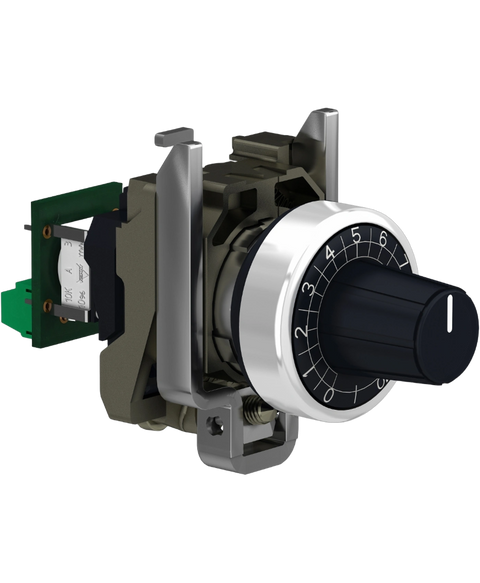

Schneider Electric XB4BD912R470K
Potentiometer, linear, 470k, 0.26W, knob; track resistance:470kohm; NO. of turns:1turns; track taper:linear; power rating:260mw; resistance tolerance:± 10%; product range:harmony xb4 series; potentiometer mounting:panel mount rohs compliant: yes
This Schneider Electric XB4BD912R470K is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controls > Pushbuttons pilot lights range and is referenced internally as PartLogic SKU PL26916554293.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony XB4 |
| Product or component type | Potentiometer |
| Device short name | XB4 |
| Head type | Standard |
| Device presentation | Complete product |
| Bezel material | Chromium plated metal |
| Mounting diameter | 22.5 mm |
| Product compatibility | Ø 6 mm shaft |
| Sale per indivisible quantity | 1 |
| CAD overall width | 30 mm |
| CAD overall height | 47 mm |
| CAD overall depth | 82 mm |
| Net weight | 0.095 kg |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Electrical shock protection class | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 | IP69 conforming to IEC 60529 | IP69K conforming to IEC 60529 |
| NEMA degree of protection | NEMA 13 | NEMA 4X |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | IEC 60947-1 | CSA C22.2 No 14 | UL 508 |
| Product certifications | CSA | BV | UL listed |
| Shape of signaling unit head | Round |
| Operator profile | knurled knob, with (white) |
| [Us] rated supply voltage | <= 30 V AC | <= 42 V DC |
| Rated power in W | 0.26 W at 70 °C |
| Precision of internal conversion resistor | +-10% |
| Potentiometer characteristic | Linear |
| Mechanical durability | 50000 cycles |
| Ohmic value | 470000 Ohm |
| Material | Cermet |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Main group | Potentiometer |
| Group of product | Potentiometer knurled knob |
| Colour of marking | White |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.300 cm |
| Package 1 Width | 4.300 cm |
| Package 1 Length | 8.800 cm |
| Package 1 Weight | 104.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.570 kg |
