Schneider Electric XAC-A4913

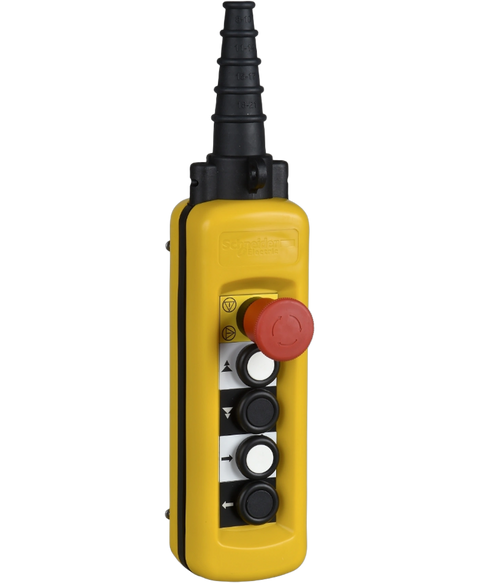

Pendant control station, harmony xac, plastic, yellow, 4 push buttons with 2no+1nc, 1 emergency stop NC
This Schneider Electric XAC-A4913 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controls > Pendant stations range and is referenced internally as PartLogic SKU PL26801467118.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony XAC |
| Product or component type | Pendant control station |
| Device short name | XACA |
| Control station type | Double insulated |
| Enclosure material | Polypropylene |
| Electrical circuit type | Control circuit |
| enclosure type | Complete ready for use |
| Control station application | Control of 2-speed hoist motor |
| Control station composition | 4 push-buttons + 1 emergency stop |
| Control button type | First push-button 1 NC + 2 NO raise, slow-fast | Second push-button 1 NC + 2 NO lower, slow-fast | Stop push-button Ø 40 mm 1 NC latching | Fourth push-button 1 NC + 2 NO left, slow-fast | Third push-button 1 NC + 2 NO right, slow-fast |
| Product compatibility | ZB2BE102 for emergency stop | XENG1191 for each direction |
| Mechanical interlocking | With mechanical interlocking between pairs |
| Control station colour | Yellow |
| Connections - terminals | Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end | Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end |
| Standards | IEC 60204-32 | IEC 60947-5-1 | CSA C22.2 No 14 | UL 508 |
| Product certifications | CCC | GOST |
| Protective treatment | TH |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Overvoltage category | Class II conforming to IEC 61140 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Mechanical durability | 1000000 cycles |
| Cable entry | Rubber sleeve with stepped entry 8…26 mm |
| Contact code designation | A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A | A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A | Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A | Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Contact operation | Staggered | Slow-break |
| Maximum resistance across terminals | 25 MOhm |
| Operating force | 18 N push-button | 8 N emergency stop |
| Short-circuit protection | 10 A fuse protection by cartridge fuse type gG |
| Rated operational power in W | 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C | 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C | 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
| Terminals description ISO n°1 | (33-34)NO_CL | (13-14)NO | (21-22)NC |
| Terminals description ISO n°2 | (11-12)NC |
| Terminal identifier | (13-14)NO | (11-12)NC |
| Net weight | 0.675 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.000 cm |
| Package 1 Width | 11.000 cm |
| Package 1 Length | 52.000 cm |
| Package 1 Weight | 886.000 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 6.121 kg |
