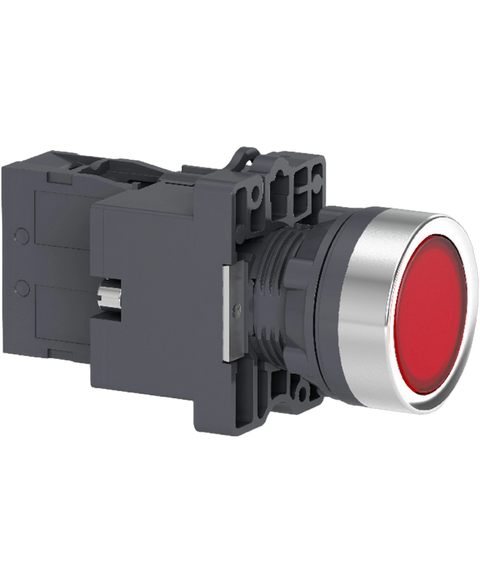

Schneider Electric XA2EW34B1
Complete illuminated push button, easy harmony xa2, plastic, flush, red, 22mm, spring return, 24v AC,DC, 1no
This Schneider Electric XA2EW34B1 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controls > Pushbuttons pilot lights range and is referenced internally as PartLogic SKU PL26909370884.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Easy Harmony XA2 |
| Product or component type | Complete illuminated push-button |
| Device short name | XA2 |
| Device presentation | Complete product |
| Component name | XA2E |
| Bezel material | Plastic |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 1 |
| Protective treatment | TC |
| Operating position | Any position |
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut recommended torque: 2.2 N.m (Us +/- 10 %) |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Red flush |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Mechanical durability | 1500000 cycles |
| Connections - terminals | Screw clamp terminals, clamping capacity: 2 x 1.5 mm² | Screw clamp terminals, clamping capacity: 1 x 2.5 mm² | Faston terminals, connection size: 6.3 mm | Screw clamp terminals, clamping capacity: 1 x 0.5 mm² |
| Tightening torque | 0.8 N.m |
| Short-circuit protection | 10 A gL fuse conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 0.27 A at 250 V, DC-13, Q600 | 3 A at 240 V, AC-15, A600 |
| Electrical durability | 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 | 500000 cycles, DC-13, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| Signalling type | Steady |
| Light source | LED |
| Bulb base | BA 9s |
| [Us] rated supply voltage | 24 V AC/DC 50/60 Hz |
| Supply voltage limits | 19…26 V AC/DC |
| Current consumption | < 20 mA |
| Service life | 10000 h |
| Width | 30 mm |
| Height | 42 mm |
| Depth | 74.5 mm |
| Net weight | 0.056 kg |
| Cap/operator or lens colour | Red |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 |
| IK degree of protection | IK03 conforming to IEC 60529 |
| Standards | GB 14048.1 | IEC 60947-5-1 | IEC 60947-1 | GB 14048.5 |
| Product certifications | CCC | CE |
| Vibration resistance | 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.000 cm |
| Package 1 Width | 11.000 cm |
| Package 1 Length | 16.000 cm |
| Package 1 Weight | 60.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 4.000 cm |
| Package 2 Width | 11.000 cm |
| Package 2 Length | 16.000 cm |
| Package 2 Weight | 306.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 70 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.734 kg |
