Schneider Electric XA2ES542

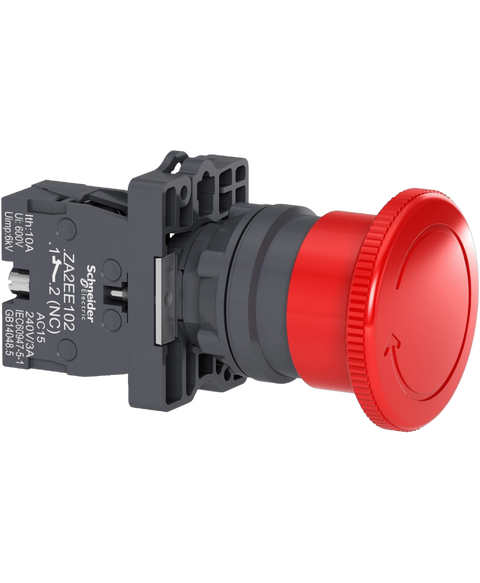

Xa2es542 - botã, o de desligamento de emergê, ncia Ø, 22mm plá, stico, cogumelo Ø, 40mm, vermelho, girar para destravar, nf
This Schneider Electric XA2ES542 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controls > Pushbuttons pilot lights range and is referenced internally as PartLogic SKU PL26805654869.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Easy Harmony XA2 |
| Product or component type | Complete emergency switching off push-button |
| Device short name | XA2 |
| Device presentation | Complete product |
| Component name | XA2E |
| Bezel material | Plastic |
| Mounting diameter | 22.5 mm |
| Operating position | Any position |
| Device mounting | Fixing hole - diameter: 22 mm |
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Shape of signaling unit head | Round |
| Type of operator | turn to release |
| Reset | Turn to release |
| Operator profile | Red mushroom Ø 40 mm |
| Cap/operator or lens colour | Red |
| Contacts type and composition | 1 NC |
| Contact operation | Slow-break |
| Positive opening | With NC contact |
| Mechanical durability | 100000 cycles |
| Connections - terminals | Screw clamp terminal, <= 2 x 1.5 mm² | Screw clamp terminal, <= 1 x 2.5 mm² | Screw clamp terminal, >= 1 x 0.5 mm² | Faston terminals, connection size: 6.3 mm |
| Tightening torque | 0.8 N.m |
| Short-circuit protection | 10 A gL fuse conforming to IEC 60269-1 |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 | 0.27 A at 250 V, DC-13, Q600 |
| Electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 | 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| Electrical reliability | Λ < 10exp(-8) at 24 V |
| Height | 30 mm |
| Width | 42 mm |
| Depth | 74.2 mm |
| Net weight | 0.058 kg |
| Protective treatment | TC |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 conforming to IEC 60068-2-27 |
| IK degree of protection | IK03 |
| Standards | IEC 60947-1 | GB 14048.1 | GB 14048.5 | IEC 60947-5-1 | IEC 60529 |
| Product certifications | CCC | CE |
| Vibration resistance | 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.000 cm |
| Package 1 Width | 5.000 cm |
| Package 1 Length | 7.000 cm |
| Package 1 Weight | 57.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 70 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.305 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 1120 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 76.880 kg |
