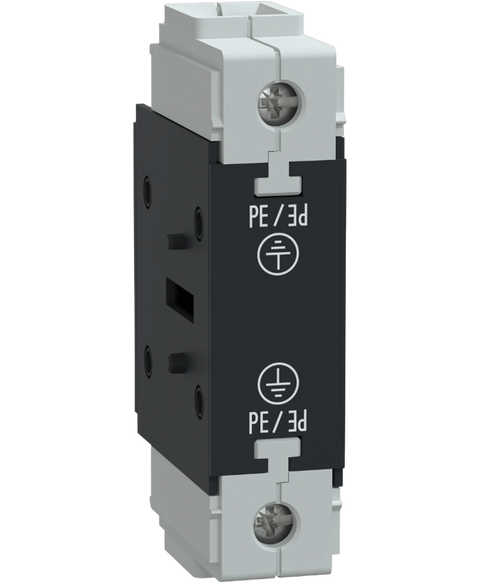

Schneider Electric VZ15
Earthing block, high performance, compatible with v3 and v4, dc,ac, 50,60Hz, 690VAC, 6 kv, 80A
This Schneider Electric VZ15 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Manual motor starters range and is referenced internally as PartLogic SKU PL26902555970.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Device short name | VZ |
| Product or component type | Additional earthing block |
| Performance level | High performance |
| Contacts type and composition | Without |
| Product compatibility | V3 | V4 |
| Network type | DC | AC |
| Network frequency | 50/60 Hz |
| Mounting location | Left | Right |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Ith] conventional free air thermal current | 80 A |
| Connections - terminals | Screw clamp terminals |
| Height | 83 mm |
| Width | 20 mm |
| Depth | 46 mm |
| Net weight | 0.1 kg |
| Standards | IEC 60947-3 |
| Product certifications | UL | CSA | GL | UKCA |
| Protective treatment | TC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mechanical robustness | Vibrations 10...150 Hz (5 gn) conforming to IEC 60068-2-6 | Shocks 11 ms (15 gn) conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -20…50 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 3.7 cm |
| Package 1 Length | 9.0 cm |
| Package 1 Weight | 79.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 69 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 5.758 kg |
