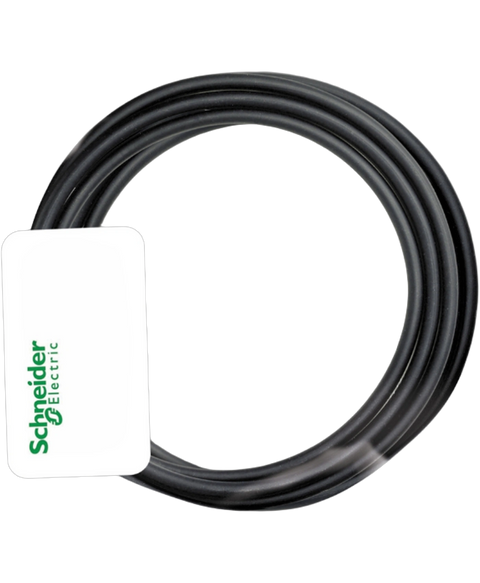

Schneider Electric VW3M5103R50
power cable - between servomotor BSH and servodrive - 4 x 4 mm + 2 x 1 mm - 5m
This Schneider Electric VW3M5103R50 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Accessories range and is referenced internally as PartLogic SKU PL26805667167.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product or component type | Power cable |
| Accessory / separate part type | Preassembled power cordset |
| Accessory / separate part category | Connection accessories |
| Product compatibility | Servo motor BMH, 1 motor stacks (190 mm) mounting type E conforming to IEC 60204-1 | Servo motor BMH, 3 motor stacks (205 mm) mounting type E conforming to IEC 60204-1 | Servo motor BSH, 2 motor stacks (140 mm) | Servo motor BSH, 3 motor stacks (140 mm) | Servo motor BSH, 4 motor stacks (140 mm) |
| Accessory / separate part destination | Between servo motor and servo drive |
| Range compatibility | Lexium 32 | Lexium 15 | Lexium 05 |
| Cable length | 5 m |
| Cable composition | 4 x 4 mm² + 2 x 1 mm² |
| Electrical connection | Free end for servo drive side | Connector - industrial M40 for servo motor side |
| Net weight | 2.13 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.800 cm |
| Package 1 Width | 38.500 cm |
| Package 1 Length | 39.200 cm |
| Package 1 Weight | 2.554 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 90.460 kg |
