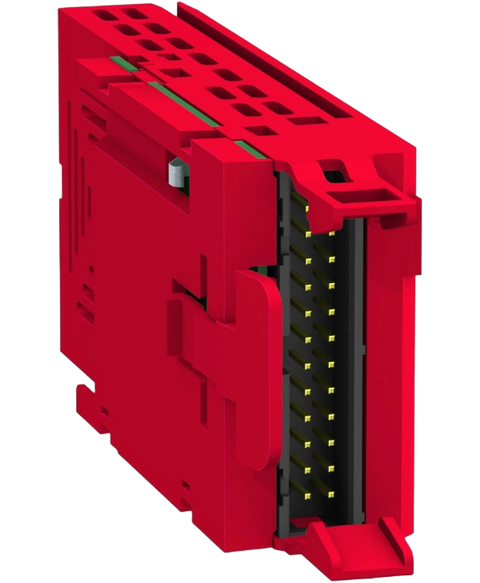

Schneider Electric VW3M3501
Enhanced safety module, esm safety card - for lexium 32 servo drive - 24 V DC
This Schneider Electric VW3M3501 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Accessories range and is referenced internally as PartLogic SKU PL26906112775.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range compatibility | Lexium 32 |
| Accessory / separate part category | Communication accessories |
| Accessory / separate part type | ESM safety card |
| Product or component type | ESM safety card |
| Product compatibility | Lexium 32 |
| Accessory / separate part destination | Servo drive |
| [Us] rated supply voltage | 24 V DC, voltage limits: 19…30 V |
| Discrete input number | 11 |
| Discrete output number | 7 |
| Voltage state 0 guaranteed | <= 5 V |
| Voltage state 1 guaranteed | >= 15 V |
| Reverse polarity protection | Yes on input |
| Short-circuit protection | Yes on output |
| Safety function | SOS (safe operating stop) | SLS (safe limited speed) | SS1 (safe stop 1) | STO (safe torque off) | SS2 (safe stop 2) |
| Safety level | SIL 3 conforming to IEC 61508 | SILCL 3 conforming to IEC 62061 | PL = e conforming to ISO 13849-1 |
| Standards | IEC 61508 | ISO 13849-1 | IEC 62061 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.800 cm |
| Package 1 Width | 13.000 cm |
| Package 1 Length | 19.000 cm |
| Package 1 Weight | 134.000 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 5.623 kg |
