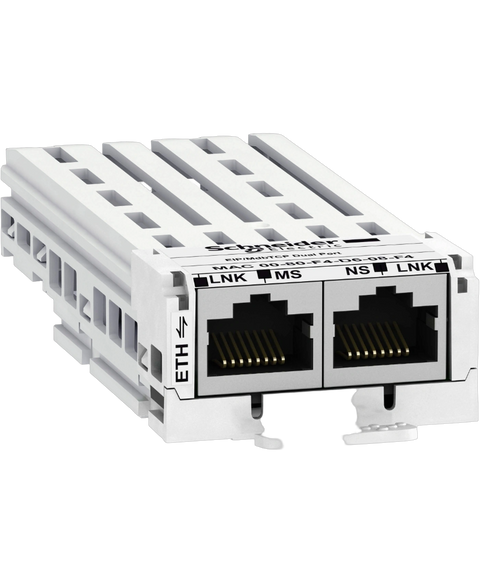

Schneider Electric VW3A3720
Communication module, ethernet,ip, 2 RJ45 connectors, 10,100Mbps, half duplex and full duplex, sntp
This Schneider Electric VW3A3720 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Accessories range and is referenced internally as PartLogic SKU PL26801460998.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Altivar |
| Product or component type | Communication module |
| Range compatibility | Altivar Process ATV600 | Altivar Process Modular |
| Communication port protocol | Modbus TCP | EtherNet/IP |
| Electrical connection | 2 connectors RJ45, Ethernet IP/Modbus TCP |
| Transmission rate | 10/100 Mbps |
| Exchange mode | Half duplex and full duplex |
| Communication service | SNMP agent for Ethernet IP | Modbus TCP server for Ethernet IP/Modbus TCP | Ethernet/IP adapter for Ethernet IP | RSTP support for Ethernet IP | FTP for Ethernet IP | ODVA AC drive and CiA 402 profile for Ethernet IP/Modbus TCP | Auto-MDIX for Ethernet IP/Modbus TCP | 32 parameters IN - 32 parameters OUT implicit messaging for Ethernet IP/Modbus TCP | FDR for Ethernet IP/Modbus TCP |
| Communication network type | IPv6 (internet protocol) |
| Topology | Daisy chain |
| Time synchronisation protocol | SNTP |
| Web server | Embedded HTTP server |
| Web services | Save/restore drive configuration | Drive setting and diagnostic | Energy monitoring | Widgets (ID, control, data table, diagnostic, charts) | Upgrade drive firmware | Customizable home page | Drive monitor | Pump function setting and monitoring | Ethernet setting and diagnostic |
| Display type | 1 LED for MS (Module Status) | 1 LED for NS (Network Status) | 1 LED for TX/RX (Transmit/Receive port 1) | 1 LED for TX/RX (Transmit/Receive port 2) |
| Bus profile | CIP AC Drive | CiA 402 |
| Net weight | 0.2 kg |
| Product certifications | ODVA | Achilles: level 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.700 cm |
| Package 1 Width | 13.000 cm |
| Package 1 Length | 18.800 cm |
| Package 1 Weight | 159.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.290 kg |
