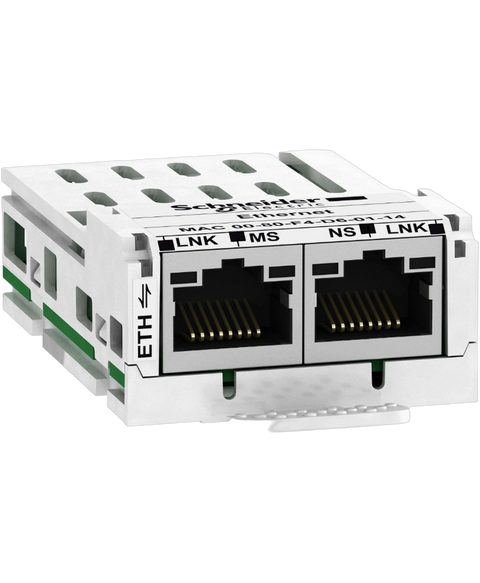

Schneider Electric VW3A3616
The VW3A3616 is a plug-in option card from Schneider Electric designed for Modicon series applications. This module facilitates both Ethernet IP and ModBus TCP communication.
This Schneider Electric VW3A3616 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Accessories range and is referenced internally as PartLogic SKU PL26805623867.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Altivar |
| Product or component type | Communication module |
| Accessory / separate part category | Communication accessories |
| Product compatibility | Lexium 32M |
| Range compatibility | Altivar Machine ATV320 | Altivar 32 | Lexium 32 |
| Communication port protocol | Modbus TCP | EtherNet/IP |
| Electrical connection | 1 connector RJ45, EtherNet/IP | 1 connector RJ45, Modbus TCP |
| Transmission rate | 10/100 Mbps |
| Addressing | IP addressing manual, BOOTP or DHCP |
| Exchange mode | Half duplex and full duplex |
| Communication service | Up to 8 connections (includes connections of Modbus TCP/Ethernet IP) for Ethernet IP/Modbus TCP | FDR Agent for Ethernet IP/Modbus TCP | Read holding registers (03), 63 words max for Modbus TCP | Read input registers (04), 63 words max for Modbus TCP | Write single register (06) for Modbus TCP | Write multiple registers (16), 63 words max for Modbus TCP | Read/write multiple registers (23) for Modbus TCP | Read device identification (43) for Modbus TCP | Diagnostics (08) for Modbus TCP | I/O scanner : read/write, 6 words maximum for Modbus TCP | Communication monitoring for Modbus TCP | SNMP agent for Ethernet IP | Master/Slave hierarchy ODVA AC drive profile and CiA 402 profile for Ethernet IP | Fixed communication monitoring adjusted by Ethernet IP scanner adaptor (Master) for Ethernet IP |
| Display type | 1 LED for MS (Module Status) | 1 LED for NS (Network Status) | 1 LED for Ethernet port activity | 1 LED for Modbus TCP port activity |
| Net weight | 0.3 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.200 cm |
| Package 1 Width | 6.100 cm |
| Package 1 Length | 9.000 cm |
| Package 1 Weight | 62.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.590 kg |
