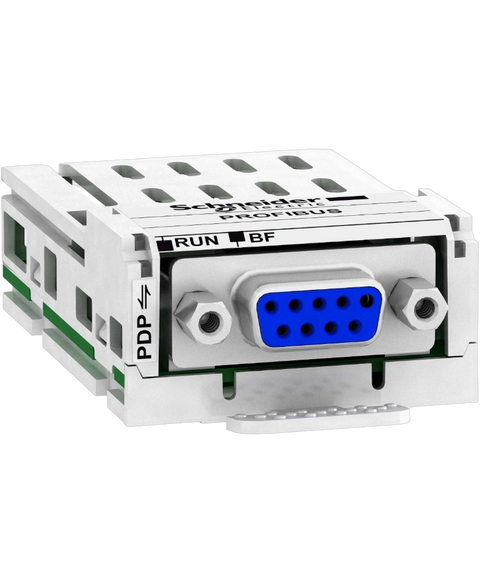

Schneider Electric VW3A3607
Profibus dp communication module, 1 female connector sub-d 9, 9.6 kbps-12Mbps trans rate, 4 configurable telegram, several dp v1 messaging modes, 1 led display- run, 1 led display- bus fault bf, diagnostic data with vsd status
This Schneider Electric VW3A3607 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Accessories range and is referenced internally as PartLogic SKU PL26805547297.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Altivar |
| Product or component type | Communication module |
| Accessory / separate part category | Communication accessories |
| Product compatibility | Lexium 32M |
| Range compatibility | Altivar 32 | Altivar Machine ATV340 except Sercos drives | Altivar Easy 610 | Lexium 32 | Altivar Process ATV900 | Altivar Process ATV600 | Altivar Machine ATV320 | Altivar Process Modular |
| Communication port protocol | Profibus DP V1 |
| Electrical connection | 1 female connector SUB-D 9 |
| Transmission rate | 9.6 kbps...12 Mbps |
| Addressing | 1...126 configurable by graphic terminal/SoMove software | Configuration settings |
| Communication service | 4 configurable telegrams | Mapping of the process data from the master | Parameters management compliant with PROFIdrive V4.1 | Several DP V1 messaging modes | Drive profile native ATV32 conforming to IEC 61800-7-201 (CiA 402) |
| Display type | 1 LED for RUN | 1 LED for bus fault (BF) |
| diagnostic function | Diagnostic data with VSD status | Host drive handled from two masters (MS0 and MS1) | Standard identification and maintenance requests |
| Bus profile | PROFIdrive | CiA 402 |
| Standards | IEC 61800-7-201 (CiA 402) |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.700 cm |
| Package 1 Width | 6.100 cm |
| Package 1 Length | 9.000 cm |
| Package 1 Weight | 65.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.643 kg |
