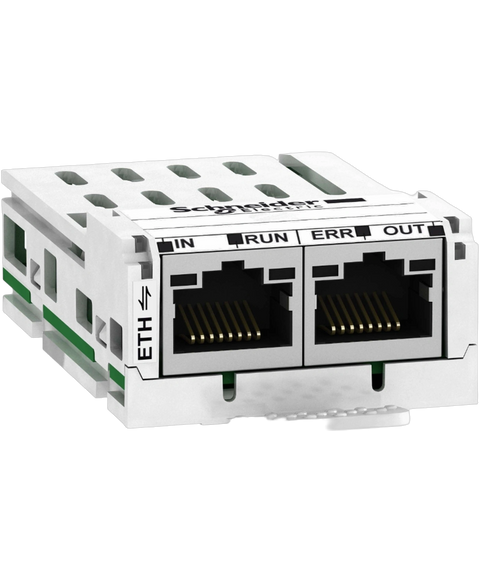

Schneider Electric VW3A3601
Communication module; current rating:-; product range:-; svhc:NO svhc (15-jan-2019) rohs compliant: yes
This Schneider Electric VW3A3601 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Accessories range and is referenced internally as PartLogic SKU PL26805530899.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Altivar |
| Product or component type | Communication module |
| Accessory / separate part category | Communication accessories |
| Product compatibility | Lexium 32M |
| Range compatibility | Altivar Process Modular | Altivar Machine ATV340 except Sercos drives | Altivar Machine ATV320 | Altivar Process ATV900 | Altivar 32 | Lexium 32 |
| Communication port protocol | EtherCAT |
| Electrical connection | 2 connectors RJ45 |
| Transmission rate | 100 Mbps |
| Maximum cable distance between devices | 100 m for 100 Mbps |
| Addressing | Logical addressing | Node addressing | Position addressing |
| Communication service | PDO and SDO support | Drive profile CiA 402 velocity mode conforming to IEC 61800-7-201 (CiA 402) | CANopen over EtherCAT (CoE) |
| Display type | 1 LED for input status | 1 LED for RUN | 1 LED for error | 1 LED for output status |
| Standards | IEC 61800-7-201 (CiA 402) |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.300 cm |
| Package 1 Width | 4.500 cm |
| Package 1 Length | 9.000 cm |
| Package 1 Weight | 61.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.580 kg |
