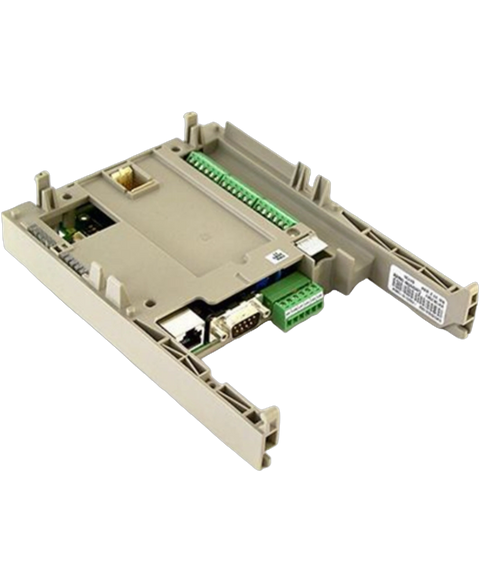

Schneider Electric VW3A3501
The VW3A3501 is a controller housed in a programmable card within Schneider Electric's Modicon series, functioning efficiently with a standard supply voltage of 24 V.
This Schneider Electric VW3A3501 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Accessories range and is referenced internally as PartLogic SKU PL26801402405.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Line | Modicon |
| Part Number | VW3A3501 |
| EAN | 3389119201001 |
| Weight | 0.19 lbs (0.09 kg) |
| Name | Controller inside programmable card |
| Rated Supply Voltage | 24 V |
| Supply Circuit Type | DC |
| Analogue Input Number | 2 |
| Analogue Input Type | AI51, AI52 current analog input 0...20 mA 250 Ohm 10 bits |
| Analogue Output Number | 2 |
| Analogue Output Type | AO51, AO52 current analog output 0...20 mA 500 Ohm 10 bits |
| Discrete Input Number | 10 |
| Discrete Output Number | 6 |
| Battery Type | Lithium |
| Transmission Rate | 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps |
| Supply Voltage Limits | 19…30 V |
| Current Consumption | 2 A maximum; 200 mA maximum per logic output; 80 mA no load |
| Maximum Output Current | 0.2 A, logic output |
| Connector Type | 9-way male SUB-D connector |
| Brand | Schneider Electric |
