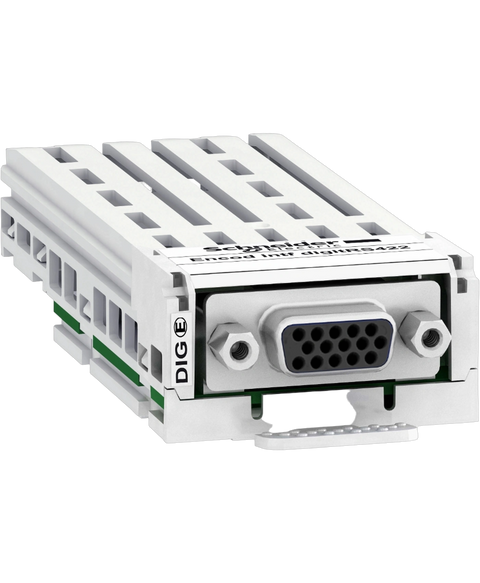

Schneider Electric VW3A3420
Digital encoder interface module, 0.05A, 24VDC, 1000kHz, 121 ohm
This Schneider Electric VW3A3420 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Accessories range and is referenced internally as PartLogic SKU PL26805677337.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Altivar |
| Product or component type | Digital encoder interface module |
| Range compatibility | Altivar Process ATV900 | Altivar Process Modular | Altivar Machine ATV340 |
| Communication port protocol | RS422 |
| Encoder type | EnDat 2.2 | A/B/I incremental XCC1 type R | A/B/I incremental XCC1 type X | SSI absolute encoder XCC2 type SG | SSI absolute encoder XCC3 type SB |
| [Us] rated supply voltage | 5 V DC (voltage limits: 4.75…5.25 V) | 12 V DC (voltage limits: 11.4…12.6 V) | 24 V DC (voltage limits: 22.8…25.2 V) |
| Maximum supply current | 0.25 A at 5 V DC | 0.1 A at 12 V DC | 0.1 A at 24 V DC |
| Protection type | Short-circuit protection | Overload protection |
| Maximum cable distance between devices | 100 m (A/B/I) | 50 m (SSI) | 100 m (SSI)at 300 kHz | 50 m (EnDat 2.2) | 100 m (EnDat 2.2)with propagation delay compensation |
| Maximum operating frequency | 1000 kHz |
| Input signal | Data+, Data- (EnDat 2.2) | Data+, Data- (SSI) | Temp+, Temp- | A+,A-/B+,B-/I+,I- (A/B/I) | TTL |
| Input impedance | 121 Ohm |
| Output signal | Clock+, Clock- (SSI) | Data+, Data-, Clock+, Clock- (EnDat 2.2) |
| Connector type | 1 female high density SUB-D 15 |
| Net weight | 0.15 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.0 cm |
| Package 1 Width | 13.0 cm |
| Package 1 Length | 19.0 cm |
| Package 1 Weight | 155.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 3.206 kg |
