Schneider Electric VW3A3407

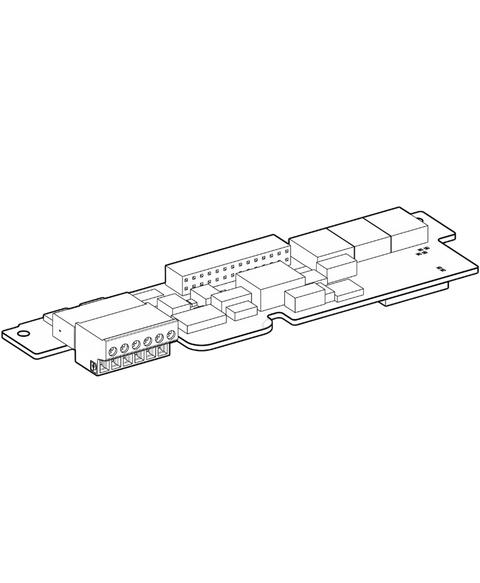

Encoder interface card, for use with altivar 71 series, push-pull outputs, 24VDC, 0.175A, 300kHz, 1000 ohm
This Schneider Electric VW3A3407 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Accessories range and is referenced internally as PartLogic SKU PL26801439389.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Altivar |
| Product or component type | Encoder interface card |
| Range compatibility | Altivar 61Q | Altivar 71Q | Altivar 71 | Altivar 61 | Altivar Lift |
| Discrete output type | Push-pull |
| [Us] rated supply voltage | 24 V DC (voltage limits: 20…30 V) |
| Number of pulses per revolution | 10000 for ATV71H......383 | 5000 for all ATV61 drives | 5000 for ATV71H...M3 | 5000 for ATV71H...M3X | 5000 for ATV71H...N4 |
| Maximum supply current | 0.175 A |
| Protection type | Overload protection | Short-circuit protection |
| Maximum cable distance between devices | 500 m |
| Maximum operating frequency | 300 kHz |
| Input signal | A | B | Compliment of A | Compliment of B/AB/A |
| Input impedance | 1000 Ohm |
| Voltage state 0 guaranteed | <= 1.5 V |
| Voltage state 1 guaranteed | > 11.5...< 25 V |
| Electrical connection | Terminal, connection capacity: 0.2 mm² (AWG 24) <500 m cable length, encoder, 100 mA at 14 V |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.500 cm |
| Package 1 Width | 17.000 cm |
| Package 1 Length | 23.000 cm |
| Package 1 Weight | 142.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 1.503 kg |
