Schneider Electric VW3A3401

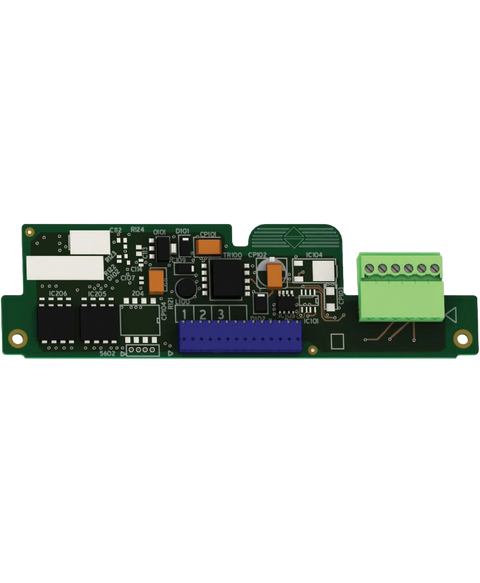

The VW3A3401 encoder interface card, part of Schneider Electric's Modicon series, facilitates communication in automation systems. This component operates effectively across a temperature spectrum of 0 to 40 degrees Celsius and utilizes an RS422 protocol for communication.
This Schneider Electric VW3A3401 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Accessories range and is referenced internally as PartLogic SKU PL26805607684.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Altivar |
| Product or component type | Encoder interface card |
| Range compatibility | Altivar Lift | Altivar 61 | Altivar 71Q | Altivar 71 | Altivar 61Q |
| Discrete output type | Differential |
| Communication port protocol | RS422 |
| [Us] rated supply voltage | 5 V DC (voltage limits: 5…5.5 V) |
| Number of pulses per revolution | 10000 for ATV71H......383 | 5000 for all ATV61 drives | 5000 for ATV71H...M3 | 5000 for ATV71H...M3X | 5000 for ATV71H...N4 |
| Maximum supply current | 0.2 A |
| Protection type | Short-circuit protection | Overload protection |
| Maximum cable distance between devices | 50 m |
| Maximum operating frequency | 300 kHz |
| Input signal | A | B | Compliment of A | Compliment of B |
| Input impedance | 440 Ohm |
| Electrical connection | Terminal, connection capacity: 0.2 mm² (AWG 24) <25 m cable length, encoder, 100 mA at 4.5 V | Terminal, connection capacity: 0.5 mm² (AWG 20) <25 m cable length, encoder, 200 mA at 4.5 V | Terminal, connection capacity: 0.5 mm² (AWG 20) <50 m cable length, encoder, 100 mA at 4.5 V | Terminal, connection capacity: 0.75 mm² (AWG 18) <50 m cable length, encoder, 200 mA at 4.5 V |
| Net weight | 0.2 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.500 cm |
| Package 1 Width | 17.000 cm |
| Package 1 Length | 23.000 cm |
| Package 1 Weight | 142.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 1.479 kg |
