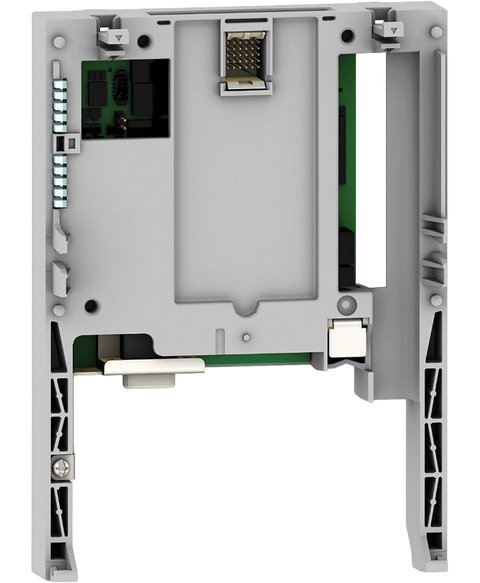

Schneider Electric VW3A3307
The VW3A3307 communications card from Schneider Electric is used primarily with variable speed drives. This unit offers a flexible transmission rate ranging from 9600 bps to 12 Mbps and facilitates communication via Profibus DP V0 protocol.
This Schneider Electric VW3A3307 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Accessories range and is referenced internally as PartLogic SKU PL26805599475.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product or component type | Communication card |
| Range compatibility | Altivar 71 | Altivar 61Q | Altivar 61 | Altivar 71Q |
| Communication port protocol | Profibus DP |
| Connector type | 9-way female SUB-D connector |
| Transmission rate | 1.5 Mbps | 12 Mbps | 9600 bps | 3 Mbps | 500 kbps | 19.2 kbps | 187.5 kbps | 6 Mbps | 93.75 kbps |
| Number of addresses | 1…126 |
| Communication service | CiA 402 profile | I/O profile | I/O data | Communication monitoring can be inhibited, adjustable | PPO type 5 |
| Display type | 1 LED for DX (data exchange) | 1 LED for ST (status) | Graphic display terminal for control word received | Graphic display terminal for I/O data | Graphic display terminal for reference received |
| Net weight | 0.3 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.200 cm |
| Package 1 Width | 17.000 cm |
| Package 1 Length | 23.000 cm |
| Package 1 Weight | 281.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.512 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 56 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 30.388 kg |
