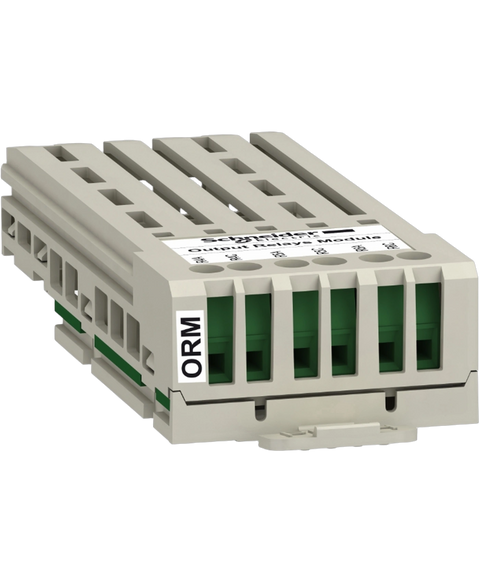

Schneider Electric VW3A3204
extended relay module - 3 relays
This Schneider Electric VW3A3204 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Accessories range and is referenced internally as PartLogic SKU PL26805539551.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product or component type | Additional output module |
| Range compatibility | Altivar Machine ATV340 | Easy Altivar 610 | Altivar Process ATV900 | Altivar Process ATV600 |
| Input/output type | 3 relay output |
| Discrete output number | 3 |
| Discrete output type | (R4, R5, R6) relay normally open, sampling time: 1 ms |
| Electrical durability | 100000 cycles |
| Minimum switching current | 5 mA at 24 V DC |
| Maximum switching current | 2 A at 250 V AC on inductive load, cos phi = 0.4 and L/R = 5 ms | 2 A at 30 V DC on inductive load, cos phi = 0.4 and L/R = 5 ms | 5 A at 250 V AC on resistive load, cos phi = 1 and L/R = 5 ms | 5 A at 30 V DC on resistive load, cos phi = 1 and L/R = 5 ms |
| Electrical connection | Screw terminal block, 1.5 mm² / AWG 16, 0.5 N.m |
| Net weight | 0.4 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.5 cm |
| Package 1 Width | 13.0 cm |
| Package 1 Length | 19.0 cm |
| Package 1 Weight | 152.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 3.114 kg |
