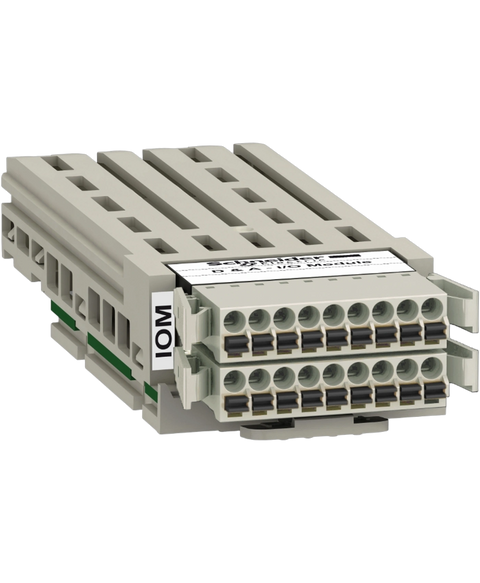

Schneider Electric VW3A3203
I,O extension module, altivar, removable spring terminal block, 24VDC, digital and analog I,O, 6 discrete input, 2 discrete output
This Schneider Electric VW3A3203 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Accessories range and is referenced internally as PartLogic SKU PL26928336472.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product or component type | Additional I/O module |
| Range compatibility | Altivar Process ATV600 | Altivar Machine ATV340 | Altivar Process ATV900 | Easy Altivar 610 |
| Input/output type | 2 analog input configurable voltage, current or probe | 6 discrete input | 2 discrete output |
| Analogue input number | 2 |
| Analogue input type | AI4, AI5 configurable current: 0...20 mA/4...20 mA, sampling time: 0…1 ms, resolution: 14 bits | AI4, AI5 configurable voltage: - 10...10 V DC, 24 V max, impedance: 20 kOhm, sampling time: 0…1 ms, resolution: 14 bits | AI4, AI5 configurable PTC, Pt 100, Pt 1000, sampling time: 0…1 ms, resolution: 14 bits |
| Discrete output number | 2 |
| Discrete output type | (DQ11, DQ12) assignable logic, sampling time: 1 ms |
| Discrete output logic | (DQ11, DQ12) negative | (DQ11, DQ12) positive |
| Discrete input number | 6 |
| Discrete input type | (DI11...DI16) programmable, impedance: 250 Ohm, sampling time: 1 ms |
| Discrete input logic | Negative (DI11...DI16) | Positive (DI11...DI16) |
| Discrete input current | 2.5 mA |
| Discrete output voltage | 24 V DC (voltage limits: <= 30 V) assignable logic |
| Maximum output current | 100 mA, assignable logic |
| Discrete input voltage | 24 V DC (voltage limits: <= 30 V) for programmable |
| Electrical connection | Removable spring terminal block, 1.5 mm² / AWG 16 |
| Protection type | Reverse polarity protection: digital input | Short-circuit protection: output |
| Net weight | 0.5 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.500 cm |
| Package 1 Width | 13.000 cm |
| Package 1 Length | 19.000 cm |
| Package 1 Weight | 161.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.368 kg |
