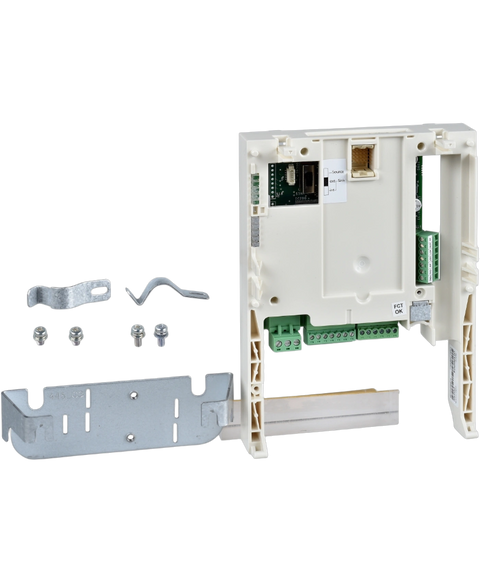

Schneider Electric VW3A3202
The VW3A3202 from Schneider Electric is an extended I,O card tailored for Modicon series applications. This device incorporates a range of input and output configurations suitable for various industrial needs.
This Schneider Electric VW3A3202 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Accessories range and is referenced internally as PartLogic SKU PL26805751769.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product or component type | Extended I/O card |
| Range compatibility | Altivar 61Q | Altivar Lift | Altivar 71Q | Altivar 71 | Altivar 61 |
| Supply | Internal supply for reference potentiometer, 10.5 V DC (10…11 V) , <0.01 A, impedance: 1…10 kOhm for overload and short-circuit protection | Internal supply, 24 V DC (21…27 V) , <0.2 A for overload and short-circuit protection |
| Analogue input number | 2 |
| Analogue input type | AI3-/Al3+ differential current programmable: 0...20 mA, impedance: 250 Ohm, sampling time: 4…6 ms, resolution: 11 bits + sign | AI4 software-configurable current: 0...20 mA, impedance: 250 Ohm, sampling time: 4…6 ms, resolution: 11 bits | AI4 software-configurable voltage: 0...10 V DC, 24 V max, impedance: 30000 Ohm, sampling time: 4…6 ms, resolution: 11 bits |
| Analogue output number | 2 |
| Analogue output type | AO2 software-configurable current: 0...20 mA, impedance: 500 Ohm, sampling time: 4…6 ms, resolution: 10 bits | AO2 software-configurable voltage: +/- 10 V DC, impedance: 470 Ohm, sampling time: 4…6 ms, resolution: 10 bits | AO3 software-configurable current: 0...20 mA, impedance: 500 Ohm, sampling time: 4…6 ms, resolution: 10 bits | AO3 software-configurable voltage: +/- 10 V DC, impedance: 470 Ohm, sampling time: 4…6 ms, resolution: 10 bits |
| Discrete output number | 5 |
| Discrete output type | (LO3, LO4) assignable logic, sampling time: 4…6 ms, compatible with level 1 PLC | (R4A, R4B, R4C) configurable relay logic |
| Discrete output logic | (LO3, LO4) negative | (LO3, LO4) positive |
| Discrete input number | 6 |
| Discrete input type | (RP) frequency control, sampling time: 4…6 ms | (LI11...LI14) programmable, compatible with level 1 PLC, impedance: 3.5 kOhm, sampling time: 4…6 ms |
| Discrete input logic | Negative (LI11...LI14), >= 16 V (state 0), <= 10 V (state 1) | Positive (LI11...LI14), <= 5 V (state 0), >= 11 V (state 1) | Positive (RP), < 1.2 V (state 0), >= 3.5 V (state 1) |
| Electrical durability | 100000 cycles for configurable relay logic |
| Discrete output voltage | 24 V DC (voltage limits: <= 30 V) assignable logic |
| Maximum output current | 0.2 A, assignable logic |
| Minimum switching current | 3 mA at 24 V DC for configurable relay logic |
| Maximum switching current | Configurable relay logic 5 A at 250 V AC on resistive load, cos phi = 1 | Configurable relay logic 5 A at 30 V DC on resistive load, cos phi = 1 | Configurable relay logic 1.5 A at 250 V AC on inductive load, cos phi = 0.4 and L/R = 7 ms | Configurable relay logic 1.5 A at 30 V DC on inductive load, cos phi = 0.4 and L/R = 7 ms |
| PTC probe input | TH2+, TH2- trip resistance, impedance: 3 kOhm | TH2+, TH2- reset resistance, impedance: 1.8 Ohm | TH2+, TH2- short circuit protection, impedance: < 0.05 Ohm | TH2+, TH2- for 6 PTC probe, impedance: <= 1.5 Ohm |
| Discrete input voltage | 24 V DC (voltage limits: <= 30 V) for programmable |
| Discrete input frequency | 0...30 kHz frequency control |
| Electrical connection | Terminal, 1.5 mm² / AWG 16, 0.25 N.m |
| Net weight | 0.3 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 17.000 cm |
| Package 1 Length | 23.000 cm |
| Package 1 Weight | 382.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.208 kg |
