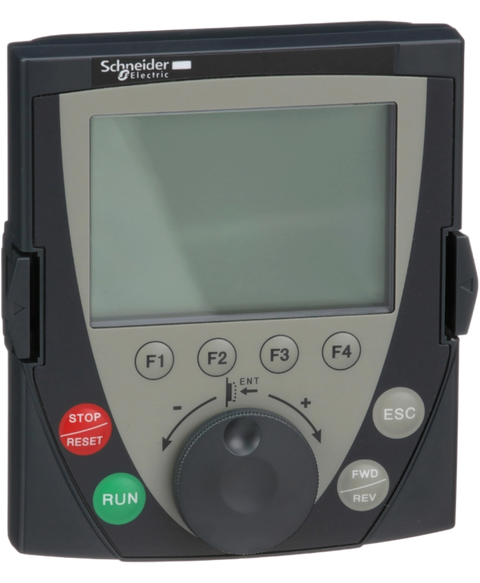

Schneider Electric VW3A1101
Schneider Electric’s VW3A1101 is designed as a remote graphic display terminal, specifically tailored for variable speed drives. It boasts a display resolution of 240 x 160 pixels and supports up to 8 lines of text, ensuring clarity during operation.
This Schneider Electric VW3A1101 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Accessories range and is referenced internally as PartLogic SKU PL26801430376.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Altivar |
| Range compatibility | Altivar 312 | Altivar 61 | Altivar Lift | Altivar 32 | Altivar Machine ATV320 | Altivar 312 Solar | Altivar 212 | Altivar 71 | Altivar 61Q | Altivar 71Q |
| Accessory / separate part category | Display and signalling accessories |
| Product or component type | Graphic terminal |
| Accessory / separate part type | Display terminal |
| Accessory / separate part destination | Variable speed drive |
| Product specific application | To control, adjust and configure the drive | To save and download configurations | To display the current values |
| IP degree of protection | IP54 |
| Mounting location | On the door of an enclosure |
| User language | Italian | English | French | Spanish | German | Chinese |
| Messages display capacity | 8 lines |
| Pixel resolution | 240 x 160 |
| Net weight | 0.145 kg |
| Ambient air temperature for operation | -15…50 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.800 cm |
| Package 1 Width | 17.500 cm |
| Package 1 Length | 23.500 cm |
| Package 1 Weight | 306.000 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 4.813 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 64 |
| Package 3 Height | 105.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 36.490 kg |
