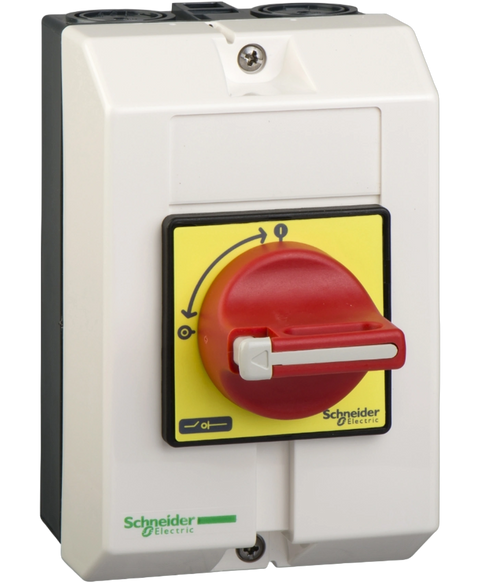

Schneider Electric VCF02GE
Isolator switch, 3-pole, 10A, 690VAC, 4kW, screw clamp terminals, panel mount, -20 to +50 degrees c, IP65
This Schneider Electric VCF02GE is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Manual motor starters range and is referenced internally as PartLogic SKU PL26805658717.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Product name | TeSys VARIO |
| Device short name | VCF |
| Product or component type | Enclosed emergency stop switch disconnector |
| Performance level | High performance |
| Poles description | 3P |
| Control type | Rotary handle |
| Handle colour | Red |
| Handle front plate colour | Yellow |
| Rotary handle padlocking | 1 to 3 padlocks 4…8 mm |
| Marking | 0 - 1 |
| [Ue] rated operational voltage | 690 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ie] rated operational current | 8.1 A (AC-23A) at 400 V |
| Rated operational power in W | 4 kW at 400 V (AC-23) | 3 kW at 400 V (AC-3) |
| Intermittent duty class | 30 |
| Making capacity ( I rms) | 120 A at 400 V AC-21A | 120 A at 400 V AC-22A | 120 A at 400 V AC-23A |
| [Icm] rated short-circuit making capacity | 1 kA at 400 V at Ipeak |
| [Icw] rated short-time withstand Rms current | 300 A at 400 V duration: 1 s |
| Rated conditional short-circuit current | 10 kA at 400 V - associated fuse 12 A aM | 10 kA at 400 V - associated fuse 12 A gG |
| Breaking capacity | 120 A at 400 V (AC-21A) | 120 A at 400 V (AC-22A) | 120 A at 400 V (AC-23A) |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles AC-21 | 30000 cycles DC-1...5 |
| Environmental characteristic | Standard environment |
| Suitability for isolation | Yes |
| Connections - terminals | Screw clamp terminals10 mm² - solid | Screw clamp terminals6 mm² - flexible - with cable end |
| Tightening torque | 2.1 N.m - on screw clamp terminals |
| Fire resistance | 960 °C conforming to IEC 60595-2-1 |
| handle front plate dimension | 60 x 60 mm |
| Height | 146 mm |
| Width | 90 mm |
| Depth | 131 mm |
| Net weight | 0.5 kg |
| Standards | IEC 60947-4-1 | IEC 60204 |
| Protective treatment | TC |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Mechanical robustness | Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 | Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -20…50 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 14.500 cm |
| Package 1 Width | 11.000 cm |
| Package 1 Length | 16.000 cm |
| Package 1 Weight | 479.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 3.800 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 56 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 38.928 kg |
