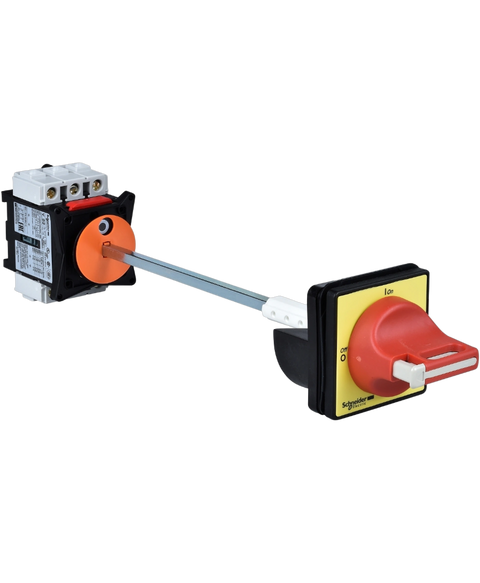

Schneider Electric VCCF2
Emergency stop sw disconnector, 3pst-NO; contact current ac max:29A; contact voltage ac max:690v; NO. of poles:3-pole; product range:tesys vario series; svhc:NO svhc (15-jan-2018) rohs compliant: yes
This Schneider Electric VCCF2 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Manual motor starters range and is referenced internally as PartLogic SKU PL26907468563.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Product Name | TeSys VARIO |
| Device Short Name | VCCF |
| Product Type | Emergency stop switch disconnector |
| Device Composition | Handle | Shaft extension | Switch |
| Mounting Support | Handle: door | Switch: symmetrical rail | Switch: plate |
| Mounting Method | By 4 screws for handle | By clips for switch | By screws for switch |
| Performance Level | High performance |
| Number of Poles | 3P |
| Contact Type and Composition | 3 NO |
| [Ue] IEC Rated Operational Voltage | 690 V AC 50/60 Hz |
| IEC Rated Operational Power in W | 11 kW at 690 V (AC-3) | 15 kW at 690 V (AC-23A) | 11 kW at 400...415 V (AC-3) | 15 kW at 500 V (AC-3) | 18.5 kW at 500 V (AC-23A) | 5.5 kW at 230...240 V (AC-3) | 7.5 kW at 230...240 V (AC-23A) | 15 kW at 400...415 V (AC-23A) |
| [Ie] Rated Operational Current | 29 A AC-23 Ue: 400 V |
| [Ith] Conventional Free Air Thermal Current | 40 A |
| [Ithe] Conventional Enclosed Thermal Current | 32 A |
| Making Capacity ( I Rms) | 400 A at 400 V AC-21A | 400 A at 400 V AC-22A | 400 A at 400 V AC-23A |
| Breaking Capacity | 320 A at 400 V (AC-21A) | 320 A at 400 V (AC-22A) | 320 A at 400 V (AC-23A) |
| Rated Conditional Short Circuit Current | 10 kA at 400 V - associated fuse 50 A aM | 10 kA at 400 V - associated fuse 50 A gG |
| [Icm] Rated Short Circuit Making Capacity | 1 kA at 400 V at Ipeak |
| [Icw] Rated Short Time Withstand Current | 480 A at 400 V duration: 1 s |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Suitability for Isolation | Yes |
| Network Type | AC | DC |
| Intermittent Duty Class | 30 |
| Control Type | Rotary handle |
| Rotary Handle Mounting Style | Extended |
| Handle Color | Red |
| Handle Front Plate Color | Yellow |
| Rotary Handle Padlocking | 1 to 3 padlocks 4…8 mm |
| Marking | 0 - 1 |
| Mechanical Durability | 100000 cycles |
| Electrical Durability | 100000 cycles AC-21 | 30000 cycles DC-1...5 |
| IEC Terminal Connection | Power circuit: screw clamp terminals10 mm² - solid | Power circuit: screw clamp terminals6 mm² - flexible - with cable end |
| Tightening Torque | Power circuit: 2.1 N.m - on screw clamp terminals |
| Base Dimension | 60 x 60 mm |
| Height | 74 mm |
| Width | 60 mm |
| Product Weight | 0.527 kg |
| Standards | IEC 60947-3 |
| Product Certifications | UL | CSA | CCC | GL | UKCA |
| Degree of Protection | IP20 conforming to IEC 60529 | IP65 |
| Protective Treatment | TC |
| Mechanical Robustness | Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 | Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
| Ambient Air Temperature for Operation | -20…50 °C |
| Fire Resistance | 960 °C conforming to IEC 60695-2-1 |
| Compatibility Code | Main switch disconnector |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.7 cm |
| Package 1 Width | 8.9 cm |
| Package 1 Length | 25.6 cm |
| Package 1 Weight | 347.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 5.696 kg |
