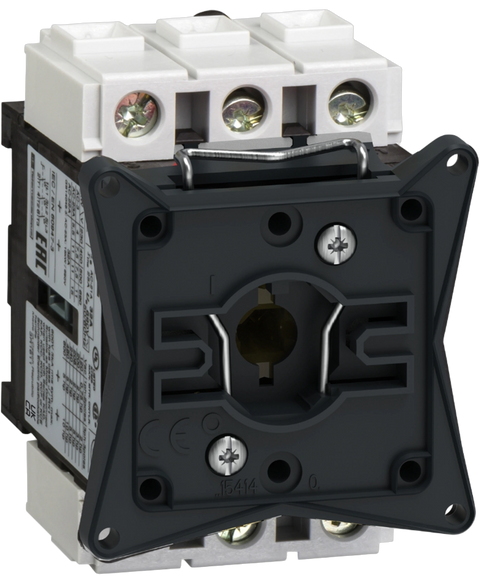

Schneider Electric V02
Switch body, tesys vario series, 12A, 3-pole, 690VAC, 50,60Hz, for switch disconnector, -20 to 50 degree c, IP20
This Schneider Electric V02 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Manual motor starters range and is referenced internally as PartLogic SKU PL26907707475.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Product Name | TeSys VARIO |
| Device Short Name | V |
| Product Type | Switch body |
| Mounting Support | Plate | Symmetrical rail |
| Performance Level | High performance |
| Number of Poles | 3P |
| Contact Type and Composition | 3 NO |
| Network type | AC | DC |
| Network frequency | 50/60 Hz |
| [Ue] IEC Rated Operational Voltage | 690 V AC 50/60 Hz |
| IEC Rated Operational Power in W | 3 kW at 400...415 V (AC-3) | 4 kW at 500 V (AC-3) | 1.5 kW at 230...240 V (AC-3) | 5.5 kW at 500 V (AC-23A) | 5.5 kW at 690 V (AC-3) | 7.5 kW at 690 V (AC-23A) | 3 kW at 230...240 V (AC-23A) | 4 kW at 400...415 V (AC-23A) |
| [Ie] Rated Operational Current | 8.1 A AC-23 Ue: 400 V |
| [Ith] Conventional Free Air Thermal Current | 12 A |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Making capacity ( I Rms) | 120 A at 400 V AC-21A | 120 A at 400 V AC-22A | 120 A at 400 V AC-23A |
| Breaking Capacity | 120 A at 400 V (AC-21A) | 120 A at 400 V (AC-22A) | 120 A at 400 V (AC-23A) |
| Rated Conditional Short Circuit Current | 10 kA at 400 V - associated fuse 12 A aM | 10 kA at 400 V - associated fuse 12 A gG |
| [Icm] Rated Short Circuit Making Capacity | 1 kA at 400 V at Ipeak |
| Intermittent duty class | 30 |
| Suitability for isolation | Yes |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Icw] rated short-time withstand Rms current | 300 A at 400 V duration: 1 s |
| Mechanical Durability | 100000 cycles |
| Electrical Durability | 100000 cycles AC-21 | 30000 cycles DC-1 | 30000 cycles DC-2 | 30000 cycles DC-3 | 30000 cycles DC-4 | 30000 cycles DC-5 |
| IEC Terminal Connection | Power circuit: screw clamp terminals10 mm² - solid | Power circuit: screw clamp terminals6 mm² - flexible - with cable end |
| Tightening Torque | Power circuit: 2.1 N.m - on screw clamp terminals |
| Height | 74 mm |
| Width | 55 mm |
| Depth | 60 mm |
| Product Weight | 0.2 kg |
| Standards | IEC 60947-3 |
| Product Certifications | UL | CSA | GL | UKCA | CCC |
| Degree of Protection | IP20 conforming to IEC 60529 |
| Protective Treatment | TC |
| Mechanical Robustness | Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 | Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
| Ambient Air Temperature for Operation | -20…50 °C |
| Fire Resistance | 960 °C conforming to IEC 60695-2-1 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.000 cm |
| Package 1 Width | 8.400 cm |
| Package 1 Length | 7.800 cm |
| Package 1 Weight | 175.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.682 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 192 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 47.036 kg |
