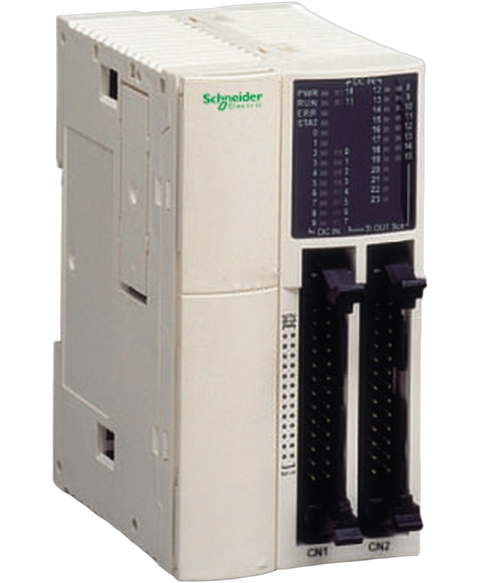

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric TWDLMDA40DTK
Discontinued by manufacturer, base unit, 24input, 16output, 24VDC
This Schneider Electric TWDLMDA40DTK is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26904379730.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,443.06
(inc. GST)
In Stock
| Range of product | Twido |
| Product or component type | Modular base controller |
| Discrete I/O number | 40 |
| Discrete input number | 24 |
| Discrete input logic | Sink or source |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Discrete output number | 16 for transistor (source) |
| [Us] rated supply voltage | 24 V DC |
| Maximum number of I/O expansion module | 7 |
| Free slots | 2 |
| Use of slot | 32 K or 64 K memory cartridge and 1 realtime clock |
| Input voltage limits | 20.4...26.4 V |
| Discrete input current | 5 mA for I0.0 to I0.1 | 5 mA for I0.6 to I0.7 | 7 mA for I0.2 to I0.5 | 7 mA for I0.8 to I0.23 |
| Input impedance | 4700 Ohm for I0.2 to I0.5 | 4700 Ohm for I0.8 to I0.23 | 5700 Ohm for I0.0 to I0.1 | 5700 Ohm for I0.6 to I0.7 |
| Filter time | 150 µs for I0.2 to I0.5 at state 0 | 150 µs for I0.8 to I0.23 at state 0 | 35 µs for I0.0 to I0.1 at state 1 | 35 µs for I0.6 to I0.7 at state 1 | 40 µs for I0.2 to I0.5 at state 1 | 40 µs for I0.8 to I0.23 at state 1 | 45 µs for I0.0 to I0.1 at state 0 | 45 µs for I0.6 to I0.7 at state 0 |
| Insulation between channel and internal logic | 1500 Vrms for 1 minute |
| Insulation resistance between channel | None |
| Discrete output voltage | 24 V |
| Output voltage limits | 20.4...28.8 V |
| Current per channel | 0.36 A for transistor output |
| Maximum current per output common | 1 A for transistor output |
| Response time | 300 µs for Q0.2 to Q0.15 at state 0 | 300 µs for Q0.2 to Q0.15 at state 1 | 5 µs for Q0.0 to Q0.1 at state 0 | 5 µs for Q0.0 to Q0.1 at state 1 |
| [Ures] residual voltage | 1 V at state 1 |
| Maximum leakage current | 0.1 mA |
| Output overvoltage protection | 39 V |
| Maximum tungsten load | 8 W |
| Discrete output current | 300 mA |
| I/O connection | HE-10 connector |
| Maximum input/output number | 152 removable screw terminal block with I/O expansion module | 208 spring terminal block with I/O expansion module | 264 HE-10 connector with I/O expansion module |
| Supply voltage limits | 20.4…26.4 V |
| Protection type | Power protection by internal fuse |
| Maximum power consumption in W | 19 W base + 4 expension module |
| Inrush current | 1 A for transistor output | 50 A for power supply |
| Insulation resistance | > 10 MOhm at 500 V, between I/O and earth terminals | > 10 MOhm at 500 V, between supply and earth terminals |
| Program memory | 3000 instructions | 6000 instructions with 64 K memory cartridge |
| Exact time for 1 Kinstruction | 1 ms |
| System overhead | 0.5 ms |
| Memory description | Internal RAM, 128 counters, no floating, no trigonometrical | Internal RAM, 128 timers, no floating, no trigonometrical | Internal RAM, 256 internal bits, no floating, no trigonometrical | Internal RAM, 3000 internal words, no floating, no trigonometrical | Internal RAM, double words, no floating, no trigonometrical | Internal RAM, floating, trigonometrical |
| Battery type | Lithium battery for internal RAM, autonomy: 30 days, charging time = 15 h, battery life = 10 year(s) |
| Integrated connection type | Power supply | Non isolated serial link mini DIN, Modbus/character mode master/slave RTU/ASCII (RS485) half duplex, 38.4 kbit/s |
| Counting input number | 2 counting input(s) at 20000 Hz 32 bits | 2 counting input(s) at 5000 Hz 16 bits |
| Positioning functions | PWM/PLS 2 channel(s) at 7 kHz |
| Analogue input number | 1 |
| Analogue input range | 0...10 V |
| Analogue input resolution | 9 bits |
| Complementary function | Event processing | PID |
| Analogue adjustment points | 1 point adjustable from 0...1023 |
| Status LED | 1 LED ERR | 1 LED STAT | 1 LED (green) PWR | 1 LED (green) RUN | 1 LED per channel I/O status |
| Net weight | 0.18 kg |
| Immunity to microbreaks | 10 ms |
| Dielectric strength | 1500 V for 1 minute, between I/O and earth terminals | 500 V for 1 minute, between supply and earth terminals |
| Product certifications | UL | CSA |
| Marking | CE |
| Ambient air temperature for storage | -25…70 °C |
| Ambient air temperature for operation | 0…55 °C |
| Relative humidity | 30…95 % without condensation |
| IP degree of protection | IP20 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Vibration resistance | 0.075 mm at 10…57 Hz on 35 mm symmetrical DIN rail | 1 gn at 57…150 Hz on 35 mm symmetrical DIN rail | 1.6 mm at 2…25 Hz on plate or panel with fixing kit | 4 gn at 25…100 Hz on plate or panel with fixing kit |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.5 cm |
| Package 1 Width | 10.5 cm |
| Package 1 Length | 12.5 cm |
| Package 1 Weight | 281.0 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 14.05 kg |
| Unit Type of Package 3 | S01 |
| Number of Units in Package 3 | 6 |
| Package 3 Height | 15.0 cm |
| Package 3 Width | 15.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 1.959 kg |
