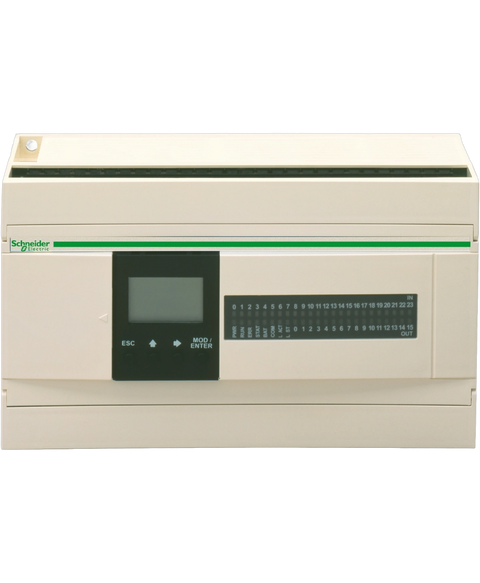

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric TWDLCAE40DRF
Discontinued by manufacturer 12,31,2016, controller, compact PLC base, twido series, 100,240 V AC supply, 24 inputs, 16 ouputs, 24 V DC, relay base unit, 2 transistor ethernet TCP, replaced by tm221ce40r
This Schneider Electric TWDLCAE40DRF is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26805664880.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,064.57
(inc. GST)
In Stock
| Range of product | Twido |
| Product or component type | Compact base controller |
| Concept | Transparent Ready |
| Discrete I/O number | 40 |
| Discrete input number | 24 |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Discrete output number | 14 for relay | 2 for transistor |
| [Us] rated supply voltage | 100...240 V AC |
| Maximum number of I/O expansion module | 7 |
| Use of slot | Memory cartridge |
| Data backed up | Internal RAM external battery TSXPLP01, 3 years autonomy |
| Integrated connection type | Power supply | Non isolated serial link mini DIN, Modbus/character mode master/slave RTU/ASCII (RS485) half duplex, 38.4 kbit/s | Serial link interface adaptor (RS232C/RS485) | Ethernet TCP/IP RJ45, , 10/100 Mbit/s, 1 twisted pair transparent ready class A10 |
| Complementary function | PID | Event processing |
| Discrete input logic | Sink or source |
| Input voltage limits | 20.4...26.4 V |
| Discrete input current | 11 mA for I0.0 to I0.1 | 11 mA for I0.6 to I0.7 | 7 mA for I0.2 to I0.5 | 7 mA for I0.8 to I0.23 |
| Input impedance | 2100 Ohm for I0.0 to I0.1 | 2100 Ohm for I0.6 to I0.7 | 3400 Ohm for I0.2 to I0.5 | 3400 Ohm for I0.8 to I0.23 |
| Filter time | 150 µs + programmed filter time for I0.6 to I0.23 at state 0 | 35 µs + programmed filter time for I0.0 to I0.5 at state 1 | 40 µs + programmed filter time for I0.0 to I0.5 at state 0 | 40 µs + programmed filter time for I0.6 to I0.23 at state 1 |
| Insulation between channel and internal logic | 1500 Vrms for 1 minute |
| Insulation resistance between channel | None |
| Minimum load | 0.1 mA |
| Contact resistance | 30000 µOhm |
| Load current | 2 A at 240 V AC inductive load, operating rate <30 cyc/mn for relay output | 2 A at 240 V AC resistive load, operating rate <30 cyc/mn for relay output | 2 A at 30 V DC inductive load, operating rate <30 cyc/mn for relay output | 2 A at 30 V DC resistive load, operating rate <30 cyc/mn for relay output |
| Mechanical durability | 20000000 cycles for relay output |
| Electrical durability | 100000 cycles for relay output |
| Current consumption | 128 mA at 24 V DC at state 1 | 128 mA at 24 V DC state 1 + input ON | 170 mA at 5 V DC at state 0 | 240 mA at 5 V DC state 1 + input ON | 5 mA at 24 V DC at state 0 | 90 mA at 5 V DC at state 1 |
| I/O connection | Non-removable screw terminal block |
| Maximum input/output number | 152 removable screw terminal block with I/O expansion module | 208 spring terminal block with I/O expansion module | 264 HE-10 connector with I/O expansion module |
| Network frequency | 50/60 Hz |
| Supply voltage limits | 85…264 V |
| Network frequency limits | 47…63 Hz |
| Power supply output current | 0.4 A for 24 V DC sensors |
| Input current | 790 mA |
| Inrush current | 35 A |
| Protection type | Power protection by internal fuse |
| Power consumption in VA | 65 VA at 100 V | 77 VA at 264 V |
| Insulation resistance | > 10 MOhm at 500 V, between I/O and earth terminals | > 10 MOhm at 500 V, between supply and earth terminals |
| Program memory | 3000 instructions |
| Exact time for 1 Kinstruction | 1 ms |
| System overhead | 0.5 ms |
| Memory description | Internal RAM, 128 counters, no floating, no trigonometrical | Internal RAM, 128 timers, no floating, no trigonometrical | Internal RAM, 256 internal bits, no floating, no trigonometrical | Internal RAM, 3000 internal words, no floating, no trigonometrical | Internal RAM, double words, no floating, no trigonometrical | Internal RAM, floating, trigonometrical |
| Free slots | 1 |
| Realtime clock | With clock, clock drift <= 30 s/month, operating time: 30 days |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Communication service | BOOTP client, Ethernet TCP/IP | Modbus messaging, Ethernet TCP/IP |
| Positioning functions | PWM/PLS 2 channel(s) at 7 kHz |
| Counting input number | 2 counting input(s) at 20000 Hz 32 bits | 4 counting input(s) at 5000 Hz 16 bits |
| Analogue adjustment points | 1 point adjustable from 0 to 511 points | 1 point adjustable from 0...1023 |
| Status LED | 1 LED (green) PWR | 1 LED (green) RUN | 1 LED per channel (green) I/O status | 1 LED (red) module error (ERR) | 1 LED user pilot light (STAT) | 1 LED 10 or 100 Mbit/s rate (LACT) | 1 LED Ethernet status (LAN ST) |
| Depth | 70 mm |
| Height | 95 mm |
| Width | 90 mm |
| Net weight | 0.525 kg |
| Immunity to microbreaks | 10 ms |
| Dielectric strength | 1500 V for 1 minute, between I/O and earth terminals | 1500 V for 1 minute, between supply and earth terminals |
| Product certifications | UL | CSA |
| Marking | CE |
| Ambient air temperature for operation | 0…55 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 30…95 % without condensation |
| IP degree of protection | IP20 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Vibration resistance | 0.075 mm at 10…57 Hz on 35 mm symmetrical DIN rail | 1 gn at 57…150 Hz on 35 mm symmetrical DIN rail | 1.6 mm at 2…25 Hz on plate or panel with fixing kit | 4 gn at 25…100 Hz on plate or panel with fixing kit |
| Shock resistance | 15 gn for 11 ms |
