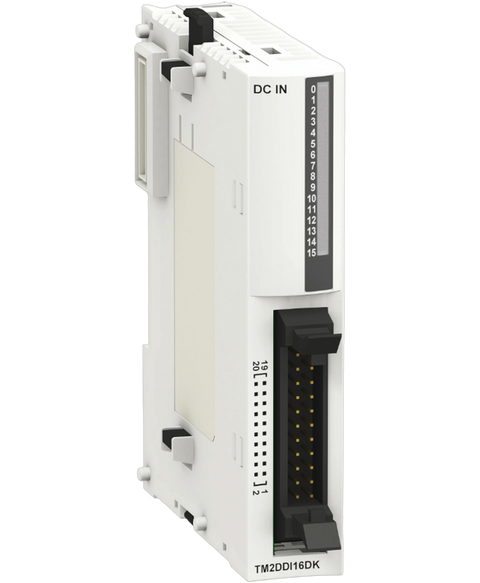

Schneider Electric TWDDMM24DRF
Discontinued by manufacturer, expansion unit, 16 dc input, 8 relay output, spring tbk
This Schneider Electric TWDDMM24DRF is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Mixed digital range and is referenced internally as PartLogic SKU PL26805548636.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Twido |
| Product or component type | Discrete I/O module |
| Discrete input number | 16 |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Discrete output number | 8 |
| Discrete output type | Relay |
| I/O connection | Spring terminal block |
| Number of common point | 1I/2O |
| Input voltage limits | 20.4...28.8 V |
| Discrete input logic | Sink or source |
| Discrete input current | 7 mA |
| Input impedance | 3.4 kOhm |
| Filter time | 8 ms at state 0 | 8 ms at state 1 |
| Discrete output function | 8 NO |
| Current per channel | 2 A |
| Maximum current per output common | 7 A |
| Contact resistance | 40000 µOhm |
| Response time | <= 7 ms |
| Insulation between channel and internal logic | 1500 Vrms for 1 min (by photocoupler) |
| Current consumption | 10 mA at 5 V DC at state 0 for all inputs/outputs | 45 mA at 24 V DC at state 1 for all inputs/outputs | 65 mA at 5 V DC at state 1 for all inputs/outputs |
| Marking | CE |
| Terminals description PLC n°1 | (3)IN_DIS#3 | TB_1 | ALT | (15)IN_DIS#15 | (8)IN_DIS#8 | (6)IN_DIS#6 | (2)IN_DIS#2 | (10)IN_DIS#10 | (12)IN_DIS#12 | (4)IN_DIS#4 | (11)IN_DIS#11 | (14)IN_DIS#14 | (13)IN_DIS#13 | (1)IN_DIS#1 | (0)IN_DIS#0 | (5)IN_DIS#5 | (7)IN_DIS#7 | (9)IN_DIS#9 | COM0_POS |
| Terminals description PLC n°2 | (0)IN_DIS#0 | (12)IN_DIS#12 | (11)IN_DIS#11 | (7)IN_DIS#7 | (6)IN_DIS#6 | TB_1 | (3)IN_DIS#3 | (10)IN_DIS#10 | (14)IN_DIS#14 | (8)IN_DIS#8 | (15)IN_DIS#15 | (1)IN_DIS#1 | COM0_NEG | (9)IN_DIS#9 | ALT_1 | (4)IN_DIS#4 | (13)IN_DIS#13 | (5)IN_DIS#5 | (2)IN_DIS#2 |
| Terminals description PLC n°3 | (COM1)COM1#0-3 | (0)OUT_DIS#0 | (5)OUT_DIS#5 | TB_2 | (NC)UNUSED | (3)OUT_DIS#3 | (COM2)COM2#4-7 | (7)OUT_DIS#7 | (1)OUT_DIS#1 | (4)OUT_DIS#4 | (6)OUT_DIS#6 | (2)OUT_DIS#2 |
| Net weight | 0.14 kg |
| Product certifications | CSA | UL |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…55 °C |
| Ambient air temperature for storage | -25…70 °C |
