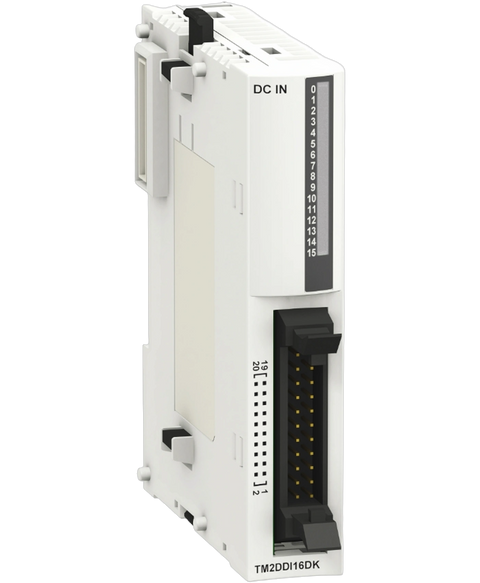

Schneider Electric TWDDDI16DT
discrete input module Twido - 16 inputs - 24 V DC
This Schneider Electric TWDDDI16DT is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input range and is referenced internally as PartLogic SKU PL26805548131.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Twido |
| Product or component type | Discrete input module |
| Discrete input number | 16 |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| I/O connection | Removable screw terminal block |
| Number of common point | 1 |
| Input voltage limits | 20.4...28.8 V |
| Discrete input logic | Sink or source |
| Discrete input current | 7 mA |
| Input impedance | 3.4 kOhm |
| Filter time | 8 ms at state 0 | 8 ms at state 1 |
| Insulation between channel and internal logic | 1500 Vrms for 1 min (by photocoupler) |
| Current consumption | 40 mA at 5 V DC at state 1 for all inputs | 5 mA at 5 V DC at state 0 for all inputs |
| Marking | CE |
| Terminals description PLC n°1 | (6)IN_DIS#6 | COM_POS#8-15 | COM_POS#0-7 | (13)IN_DIS#13 | COM_POS | (9)IN_DIS#9 | (5)IN_DIS#5 | (15)IN_DIS#15 | ALT | (10)IN_DIS#10 | (0)IN_DIS#0 | (7)IN_DIS#7 | (4)IN_DIS#4 | (12)IN_DIS#12 | (14)IN_DIS#14 | (11)IN_DIS#11 | (1)IN_DIS#1 | (8)IN_DIS#8 | (2)IN_DIS#2 | (3)IN_DIS#3 |
| Terminals description PLC n°2 | (1)IN_DIS#1 | (5)IN_DIS#5 | (13)IN_DIS#13 | (6)IN_DIS#6 | (9)IN_DIS#9 | ALT_1 | (12)IN_DIS#12 | (14)IN_DIS#14 | COM_NEG#8-15 | (3)IN_DIS#3 | (7)IN_DIS#7 | (8)IN_DIS#8 | COM_NEG#0-7 | (15)IN_DIS#15 | (10)IN_DIS#10 | (4)IN_DIS#4 | (2)IN_DIS#2 | (11)IN_DIS#11 | (0)IN_DIS#0 |
| Net weight | 0.1 kg |
| Product certifications | CSA | UL |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…55 °C |
| Ambient air temperature for storage | -25…70 °C |
