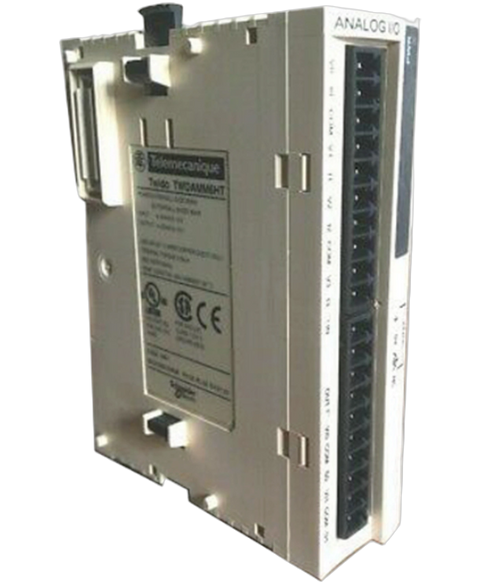

Schneider Electric TWDAMM6HT
Discontinued by manufacturer, expansion module, analog, 4input, 2output, 0-10VDC, 4-20mA
This Schneider Electric TWDAMM6HT is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog mixed range and is referenced internally as PartLogic SKU PL26805553489.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Twido |
| Product or component type | Analogue I/O module |
| Analogue input number | 4 |
| Analogue input type | Current 4...20 mA differential | Voltage 0...10 V non differential |
| Analogue input resolution | 12 bits |
| Analogue output number | 2 |
| Analogue output type | Current: 4...20 mA | Voltage: 0...10 V |
| Analogue output resolution | 12 bits |
| I/O connection | Removable screw terminal block |
| Cross talk | <= 2 LSB |
| Input level | High level |
| LSB value | 2.5 mV voltage | 4.8 µA current | 2.5 mV, analogue input type: voltage | 4.8 µA, analogue input type: current |
| Permissible continuous overload | 13 V, analogue input type: voltage | 40 mA, analogue input type: current |
| Input impedance | <= 250 Ohm current | >= 10000 Ohm voltage |
| load type | Resistive |
| Load impedance ohmic | <= 300 Ohm current | >= 2000 Ohm voltage |
| Stabilisation time | 20 ms |
| Conversion time | 20 ms + 1 controller cycle time |
| Sampling duration | 16 ms |
| Acquisition period | 16 ms + 1 controller cycle time |
| Measurement error | +/- 0.5 % of full scale 0...10 V at 25 °C | +/- 0.5 % of full scale 4...20 mA at 25 °C | +/- 0.1 % of full scale 0...10 V at 25 °C | +/- 0.1 % of full scale 4...20 mA at 25 °C |
| Temperature coefficient | +/-0.06 %FS/°C, analogue input type: current | +/-0.06 %FS/°C, analogue input type: voltage | +/-0.5 %FS/°C, analogue output type: current | +/-0.5 %FS/°C, analogue output type: voltage |
| Repeat accuracy | +/-0.5 %FS |
| Non-linearity | +/- 0.4 %FS, analogue input type: current | +/- 0.4 %FS, analogue input type: voltage | +/- 0.5 %FS, analogue output type: current | +/- 0.5 %FS, analogue output type: voltage |
| Output error | +/- 1 %FS |
| Output ripple | <= 1 LSB |
| Total error | +/-1 %FS, analogue input type: current | +/-1 %FS, analogue input type: voltage | +/-2 %FS, analogue output type: current | +/-2 %FS, analogue output type: voltage |
| Common mode rejection | - 50 dB |
| Type of cable | Shielded twisted pair |
| Insulation between channel and internal logic | Photocoupler |
| Supply | External supply |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4…28.8 V |
| Current consumption | 60 mA at 5 V DC | 80 mA at 24 V DC |
| Marking | CE |
| Dielectric strength | 800 V between the I/O and the supply circuit |
| Product certifications | UL | CSA |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…55 °C |
| Ambient air temperature for storage | -25…70 °C |
