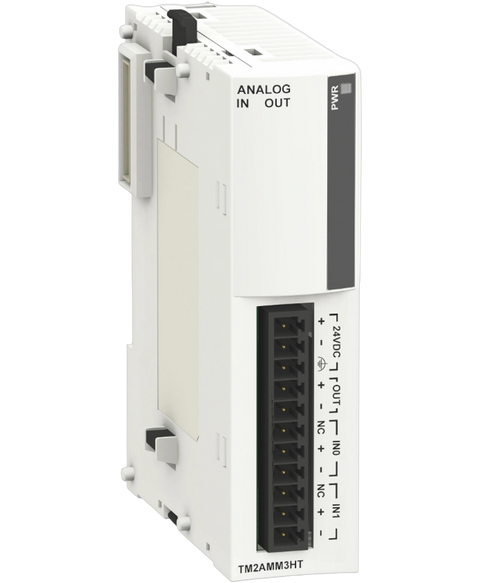

Schneider Electric TWDAMM3HT
The Schneider Electric TWDAMM3HT is an analog I,O module from the Twido series. It allows for two analog inputs and one analog output, featuring a 12-bit resolution for precise control.
This Schneider Electric TWDAMM3HT is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog mixed range and is referenced internally as PartLogic SKU PL26805552613.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Twido |
| Product or component type | Analogue I/O module |
| Analogue input number | 2 |
| Analogue input type | Current 4...20 mA differential | Voltage 0...10 V non differential |
| Analogue input resolution | 12 bits |
| Analogue output number | 1 |
| Analogue output type | Current: 4...20 mA | Voltage: 0...10 V |
| Analogue output resolution | 12 bits |
| I/O connection | Removable screw terminal block |
| Cross talk | <= 2 LSB |
| Input level | High level |
| LSB value | 2.5 mV voltage | 4.8 µA current | 2.5 mV, analogue input type: voltage | 4.8 µA, analogue input type: current |
| Permissible continuous overload | 13 V, analogue input type: voltage | 40 mA, analogue input type: current |
| Input impedance | >= 10 Ohm current | >= 1000000 Ohm voltage |
| load type | Resistive |
| Load impedance ohmic | <= 300 Ohm current | >= 2000 Ohm voltage |
| Stabilisation time | 20 ms |
| Conversion time | 20 ms + 1 controller cycle time |
| Sampling duration | 16 ms |
| Sampling repetition time | 16 ms |
| Acquisition period | 16 ms + 1 controller cycle time |
| Measurement error | +/- 0.2 % of full scale 0...10 V 0...10 V at 25 °C | +/- 0.2 % of full scale 4...20 mA 4...20 mA at 25 °C |
| Temperature coefficient | +/-0.015 %FS/°C, analogue output type: current | +/-0.015 %FS/°C, analogue output type: voltage | +/-0.006 %FS/°C, analogue input type: current | +/-0.006 %FS/°C, analogue input type: voltage |
| Repeat accuracy | +/-0.5 %FS |
| Non-linearity | +/- 0.2 %FS, analogue output type: current | +/- 0.2 %FS, analogue output type: voltage | +/- 0.2 %FS, analogue input type: current | +/- 0.2 %FS, analogue input type: voltage |
| Output error | +/- 1 %FS |
| Output ripple | <= 1 LSB |
| Total error | +/-1 %FS, analogue output type: current | +/-1 %FS, analogue output type: voltage | +/-1 %FS, analogue input type: current | +/-1 %FS, analogue input type: voltage |
| Common mode rejection | - 50 dB |
| Type of cable | Shielded twisted pair |
| Insulation between channel and internal logic | Photocoupler |
| Supply | External supply |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4…28.8 V |
| Current consumption | 50 mA at 5 V DC | 60 mA at 24 V DC |
| Marking | CE |
| Net weight | 0.085 kg |
| Dielectric strength | 500 V between the I/O and the supply circuit |
| Product certifications | UL | CSA |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…55 °C |
| Ambient air temperature for storage | -25…70 °C |
