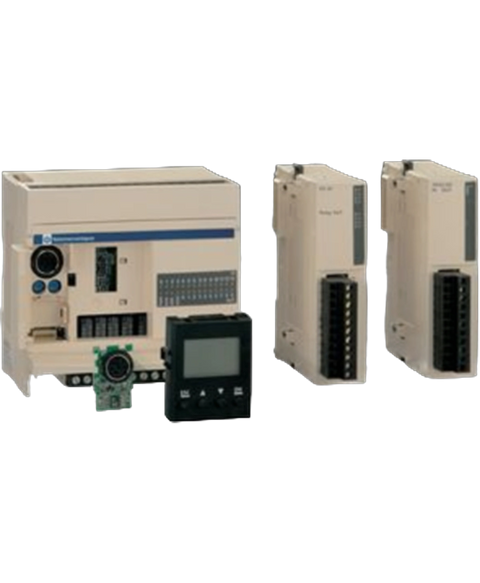

Schneider Electric TWDAMI2HT
Discontinued by manufacturer, analog input module, twido, 24VDC supply, 2 inputs 0-10v, 4-20mA
This Schneider Electric TWDAMI2HT is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input range and is referenced internally as PartLogic SKU PL26897619058.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Twido |
| Product or component type | Analogue input module |
| Analogue input number | 2 |
| Analogue input type | Current 4...20 mA differential | Voltage 0...10 V non differential |
| Analogue input resolution | 12 bits |
| I/O connection | Removable screw terminal block |
| Cross talk | <= 2 LSB |
| Input level | High level |
| LSB value | 2.5 mV, analogue input type: voltage | 4.8 µA, analogue input type: current |
| Permissible continuous overload | 13 V, analogue input type: voltage | 40 mA, analogue input type: current |
| Input impedance | >= 1000000 Ohm voltage | 10 Ohm current |
| Sampling duration | 16 ms |
| Sampling repetition time | 16 ms |
| Acquisition period | 16 ms per channel + 1 controller cycle time |
| Measurement error | +/- 0.2 % of full scale 0...10 V 0...10 V at 25 °C | +/- 0.2 % of full scale 4...20 mA 4...20 mA at 25 °C |
| Temperature coefficient | +/-0.006 %FS/°C, analogue input type: current | +/-0.006 %FS/°C, analogue input type: voltage |
| Repeat accuracy | +/-0.5 %FS |
| Non-linearity | +/- 0.2 %FS, analogue input type: current | +/- 0.2 %FS, analogue input type: voltage |
| Total error | +/-1 %FS, analogue input type: current | +/-1 %FS, analogue input type: voltage |
| Common mode rejection | - 50 dB |
| Type of cable | Shielded twisted pair |
| Insulation between channel and internal logic | Photocoupler |
| Supply | External supply |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4…28.8 V |
| Current consumption | 50 mA at 5 V DC | 60 mA at 24 V DC |
| Marking | CE |
| Net weight | 0.085 kg |
| Dielectric strength | 500 V between the inputs and the supply circuit |
| Product certifications | UL | CSA |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…55 °C |
| Ambient air temperature for storage | -25…70 °C |
