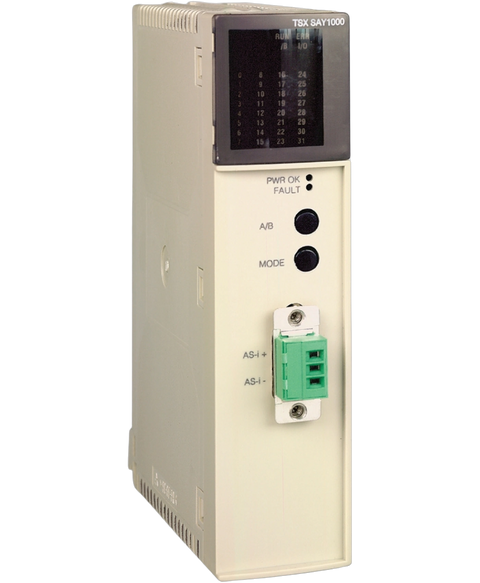

Schneider Electric TSXSAY1000
Schneider Electric's TSXSAY1000 functions as a PLC master module designed for effective communication and control in automation systems. This component features a 5V DC voltage specification and operates at a current rating of 450 mA, making it suitable for various applications requiring management and monitoring.
This Schneider Electric TSXSAY1000 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog output range and is referenced internally as PartLogic SKU PL26801467215.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Premium Automation platform |
| Product or component type | AS-Interface master module |
| Range compatibility | AS-Interface cabling system |
| Actuator sensor interface profile [AS-i] | M2E |
| AS-i version | V2 |
| Addressing | Standard and extended |
| Number of server device(s) | 31, extended addressing | 31, standard addressing |
| Type of connectable interfaces | Analog I/Os, standard addressing | Discrete I/Os (4I/3O), extended addressing | Discrete I/Os (4I/4O), standard addressing | Safety interfaces, standard addressing |
| Electrical connection | 1 male connector SUB-D, 3 ways |
| Supply | Via power supply integrated into the host platform of the module |
| Current consumption | 450 mA at 5 V DC |
| Local signalling | Display unit |
| Number of modules per base controller | 1 for TSX570. | 1 for TSX57C. | 2 for TSX571. | 4 for TSX572. | 8 for TSX573. | 8 for TSX574. | 8 for TSX575. | 8 for TSX576. |
| Net weight | 0.34 kg |
| Standards | IEC 60068-2-27, Ea tests | IEC 60068-2-6, Fc tests |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| IP degree of protection | IP20 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 425.0 g |
