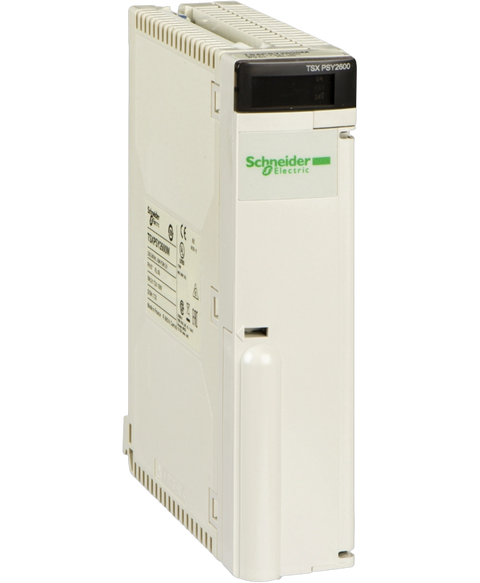

Schneider Electric TSXPSY5520M
The TSXPSY5520M is a power supply module that operates within a primary voltage range of 24 to 48 VDC, with a broader range of 19.2 to 60 VDC. It supports input currents of 1.5 A at 48 V and 3 A at 24 V, providing essential power for various applications.
This Schneider Electric TSXPSY5520M is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Power supplies range and is referenced internally as PartLogic SKU PL26902790593.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Premium Automation platform |
| Product or component type | Power supply module |
| Primary voltage | 24...48 V DC 19.2...60 V |
| Input current | <= 1500 mA 48 V | <= 3000 mA 24 V |
| Inrush current | 15 A 24 V | 15 A 48 V |
| I²t on activation | 50 A².s 24 V | 55 A².s 48 V |
| It on activation | 6 A.s 48 V | 7 A.s 24 V |
| Protection type | Internal fuse 5 A 5 x 20 mm time-delayed primary circuit | Overload protection secondary circuit | Overvoltage protection secondary circuit | Short-circuit protection secondary circuit |
| Total useful secondary power | 50 W |
| Secondary power | 19 W 24 V DC | 35 W 5 V DC |
| Current at secondary voltage | 0.8 A 24 V DC relay power supply | 7 A 5 V DC |
| Insulation resistance | >= 10 mOhm primary/ground | >= 10 mOhm primary/secondary |
| Marking | CE |
| Local signalling | 1 LED (green) for presence of voltages (OK) | 1 LED (red) for battery fault (BAT) |
| Module format | Double |
| Net weight | 0.89 kg |
| Immunity to microbreaks | 1 ms |
| Dielectric strength | 2000 V primary/earth | 2000 V primary/secondary |
| Standards | CSA C22.2 No 213 Class I Division 2 Group D | 93/68/EEC | CSA C22.2 No 213 Class I Division 2 Group C | 89/336/EEC | UL 508 | 73/23/EEC | 92/31/EEC | CSA C22.2 No 142 | IEC 61131-2 | CSA C22.2 No 213 Class I Division 2 Group B | CSA C22.2 No 213 Class I Division 2 Group A |
| Product certifications | RMRS | DNV | LR | ABS | RINA | GL | BV |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation | 5…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Protective treatment | TC |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 1.02 kg |
