Schneider Electric TSXPBY100
The TSXPBY100 is part of Schneider Electric's TSX Micro PLCs product line. This Profibus-DP option module operates effectively within a temperature range from 0 °C to +60 °C and can be stored safely at temperatures as low as -25 °C and as high as +70 °C, making it suitable for various environments.
This Schneider Electric TSXPBY100 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules range and is referenced internally as PartLogic SKU PL26801461668.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Profibus DP |
| Product or component type | Profibus DP V0 module kit |

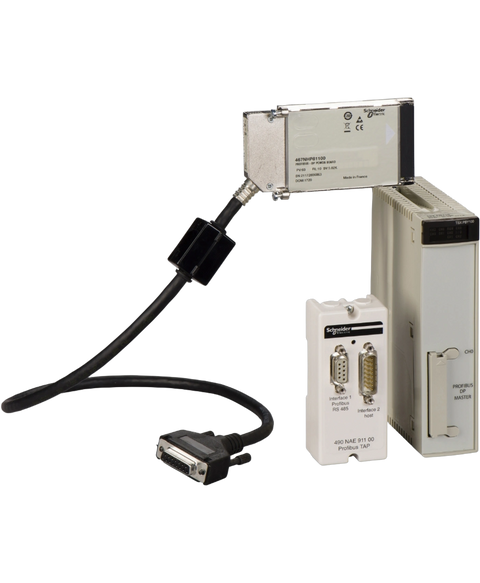

| Kit composition | Host module for the PCMCIA card | T-junction box enabling the tap link of the main bus | Profibus DP PCMIA card with its integrated connecting cable (0.6 m) |
| Product compatibility | For Atrium slot-PLC | For Premium PLC |
| Structure type | Industrial bus |
| Physical interface | RS485 |
| Method of access | Master class 1 | Master class 2 |
| Mode of transmission | NRZ |
| Transmission support medium | twisted shielded pairs cable |
| Transmission rate | 12 Mbit/s, 100 m bus without repeater | 12 Mbit/s, 400 m bus with 3 repeaters | 9.6 kbit/s, 1200 m bus without repeater | 9.6 kbit/s, 4800 m bus with 3 repeaters |
| Number of server device(s) | 126 |
| Number of inputs | 3872 |
| Number of outputs | 3872 |
| Communication service | Check slave configuration (on power up) class 1 master | Manage monitoring request (Global CONTROL and Get Master Diag) class 2 master | No master/master dialogue class 2 master | Profibus FMS message handling not supported class 1 master | Profibus FMS message handling not supported class 2 master | Read/write DP slave I/O data class 1 master | Set slave parameters (on power up) class 1 master | Transfer slave diagnostic data class 1 master |
| Current consumption | 400 mA at 5 V DC internal |
| Module format | Standard |
| Net weight | 0.87 kg |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | <= 2000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 24.5 cm |
| Package 1 Width | 24.5 cm |
| Package 1 Length | 27.5 cm |
| Package 1 Weight | 1.309 kg |
