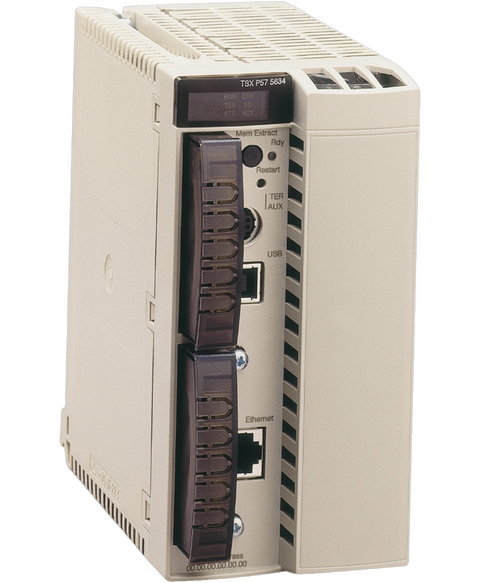

Schneider Electric TSXP575634M
The TSXP575634M from Schneider Electric is part of the TSX Micro PLCs series and features robust internal memory options. With an internal RAM of 32 K words for data and programs, this module can be enhanced using a PCMCIA card for extra data capacity.
This Schneider Electric TSXP575634M is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Modicon premium > Processors range and is referenced internally as PartLogic SKU PL26909652789.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Premium Automation platform |
| Product or component type | Unity processor |
| Software designation | Unity Pro |
| Concept | Transparent Ready |
| Number of racks | 16 4/6/8 slots | 8 12 slots |
| Number of slots | 64 | 128 | 96 |
| Discrete I/O processor capacity | 2040 I/O |
| Analogue I/O processor capacity | 512 I/O |
| Number of application specific channel | 64 |
| Number of process control channel | 30 up to 90 simple loops |
| Integrated connection type | Non isolated serial link female mini DIN connector (RS485) (19.2 kbit/s) | Ethernet TCP/IP RJ45 connector | USB port (12 Mbit/s) |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Communication module processor capacity | 1 | 3 | 8 | 5 |
| Memory description | Internal RAM (with PCMCIA card) 1024 kB data | Internal RAM (with PCMCIA card) 7168 kB program | Internal RAM (without PCMCIA card) 1024 kB program and data | PCMCIA card 16384 kB additional data storage |
| Maximum size of object areas | 128 %MWi internal words located internal data | 32768 %Mi located internal bits | 64 %KWi constant words located internal data | Unlimited (DFB and EFB function blocks) unlocated internal data | Unlimited (elementary and derived data) unlocated internal data |
| Application structure | 1 master task | 128 event tasks | 32 timers | 1 fast task | 4 auxiliary tasks |
| Execution time per instruction | 0.0375...0.045 µs Boolean with PCMCIA card | 0.0375...0.045 µs Boolean without PCMCIA card | 0.045...0.06 µs word or fixed-point arithmetic with PCMCIA card | 0.045...0.06 µs word or fixed-point arithmetic without PCMCIA card | 0.48...0.56 µs floating points with PCMCIA card | 0.48...0.56 µs floating points without PCMCIA card |
| Number of instructions per ms | 14 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card | 14 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card | 20.26 Kinst/ms 100 % Boolean with PCMCIA card | 20.26 Kinst/ms 100 % Boolean without PCMCIA card |
| System overhead | 0.07 ms for fast task | 1 ms for master task |
| Marking | CE |
| Local signalling | 1 LED (green) for Ethernet TCP/IP port ready (RUN) | 1 LED (green) for processor running (RUN) | 1 LED (red) for collision detection (COL) | 1 LED (red) for Ethernet TCP/IP port fault (ERR) | 1 LED (red) for I/O module or configuration fault (I/O) | 1 LED (red) for processor or system fault (ERR) | 1 LED (yellow) for activity on TER or AUX terminal port (TER) | 1 LED (yellow) for Ethernet link diagnostics (STS) | 1 LED (yellow) for reception activity (RX) | 1 LED (yellow) for transmission activity (TX) |
| Current consumption | 1680 mA at 5 V DC |
| Module format | Double |
| Net weight | 0.61 kg |
| Standards | CSA C22.2 No 142 | CSA C22.2 No 213 Class I Division 2 Group D | CSA C22.2 No 213 Class I Division 2 Group B | 73/23/EEC | 93/68/EEC | 89/336/EEC | CSA C22.2 No 213 Class I Division 2 Group C | IEC 61131-2 | UL 508 | 92/31/EEC | CSA C22.2 No 213 Class I Division 2 Group A |
| Product certifications | BV | DNV | RMRS | GL | ABS | RINA | LR |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation | 5…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Protective treatment | TC |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 1.035 kg |
