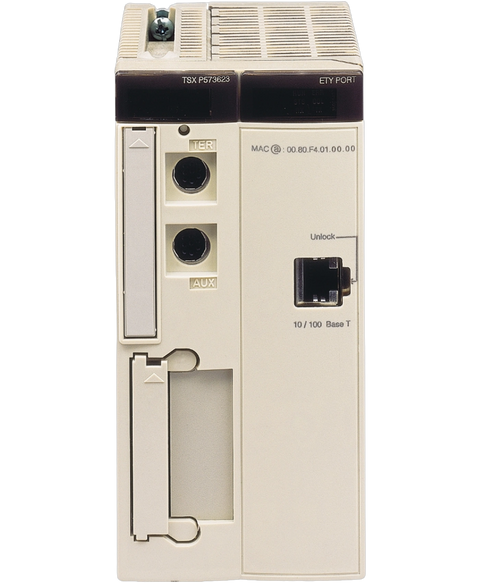

Schneider Electric TSXP573634M
The TSXP573634M model from Schneider Electric serves as a CPU within the Modicon series. This versatile unit accommodates 16 racks with multiple slot configurations. It supports a discrete I,O capacity of 1024 I,O points and an analog I,O capacity of 128 I,O points, effectively managing various control tasks.
This Schneider Electric TSXP573634M is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Modicon premium > Processors range and is referenced internally as PartLogic SKU PL26805318638.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Premium Automation platform |
| Product or component type | Unity processor |
| Software designation | Unity Pro |
| Concept | Transparent Ready |
| Number of racks | 16 4/6/8 slots | 8 12 slots |
| Number of slots | 128 | 64 | 96 |
| Discrete I/O processor capacity | 1024 I/O |
| Analogue I/O processor capacity | 128 I/O |
| Number of application specific channel | 32 |
| Number of process control channel | 15 up to 45 simple loops |
| Integrated connection type | Non isolated serial link 2 female mini DIN connector (RS485) (19.2/115 kbit/s) | Ethernet TCP/IP RJ45 connector |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Communication module processor capacity | 2 | 1 | 3 | 8 |
| Memory description | Internal RAM (with PCMCIA card) 1792 kB program | Internal RAM (with PCMCIA card) 192 kB data | Internal RAM (without PCMCIA card) 192 kB program and data | PCMCIA card 16384 kB additional data storage |
| Maximum size of object areas | 16384 %Mi located internal bits | 64 %KWi constant words located internal data | 64 %MWi internal words located internal data | 64 kB (DFB and EFB function blocks) unlocated internal data | 64 kB (elementary and derived data) unlocated internal data |
| Application structure | 1 master task | 1 fast task | 64 event tasks |
| Execution time per instruction | 0.12 µs Boolean without PCMCIA card | 0.17 µs Boolean with PCMCIA card | 0.17 µs word or fixed-point arithmetic without PCMCIA card | 0.32 µs word or fixed-point arithmetic with PCMCIA card | 1.75...3 µs floating points with PCMCIA card | 1.75...3 µs floating points without PCMCIA card |
| Number of instructions per ms | 3.11 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card | 4.59 Kinst/ms 100 % Boolean with PCMCIA card | 5.11 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card | 6.72 Kinst/ms 100 % Boolean without PCMCIA card |
| System overhead | 0.35 ms for fast task | 1 ms for master task |
| Marking | CE |
| Local signalling | 1 LED (green) for Ethernet TCP/IP port ready (RUN) | 1 LED (green) for processor running (RUN) | 1 LED (red) for collision detection (COL) | 1 LED (red) for Ethernet TCP/IP port fault (ERR) | 1 LED (red) for I/O module or configuration fault (I/O) | 1 LED (red) for processor or system fault (ERR) | 1 LED (yellow) for activity on TER or AUX terminal port (TER) | 1 LED (yellow) for Ethernet link diagnostics (STS) | 1 LED (yellow) for reception activity (RX) | 1 LED (yellow) for transmission activity (TX) |
| Current consumption | 1900 mA at 5 V DC |
| Module format | Double |
| Net weight | 0.64 kg |
| Standards | CSA C22.2 No 213 Class I Division 2 Group D | CSA C22.2 No 142 | CSA C22.2 No 213 Class I Division 2 Group C | UL 508 | 93/68/EEC | CSA C22.2 No 213 Class I Division 2 Group B | CSA C22.2 No 213 Class I Division 2 Group A | 89/336/EEC | IEC 61131-2 | 92/31/EEC | 73/23/EEC |
| Product certifications | LR | RINA | RMRS | ABS | GL | BV | DNV |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation | 5…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Protective treatment | TC |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 757.0 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 5.489 kg |
