Schneider Electric TSXP573623AM

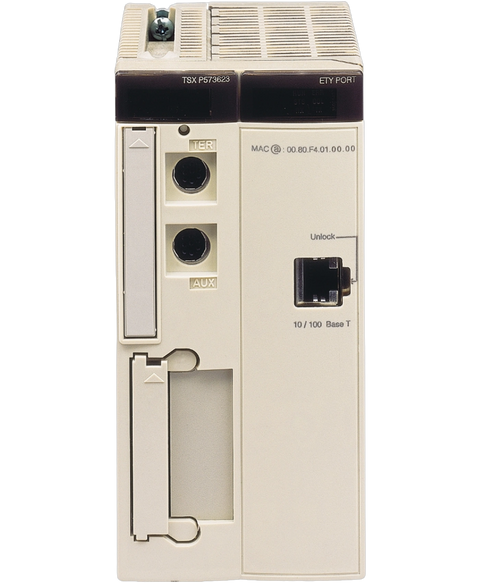

The TSXP573623AM from Schneider Electric is a versatile micro PLC designed for sophisticated control applications. It features integrated Ethernet TCP,IP connectivity and a non-isolated serial link, which enables efficient data communication. With a robust capacity for 16 racks, this PLC can handle extensive I,O operations.
This Schneider Electric TSXP573623AM is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Modicon premium > Processors range and is referenced internally as PartLogic SKU PL26805676490.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Premium Automation platform |
| Product or component type | Double-format PL7 processor |
| Software designation | PL7 Junior/Pro |
| Concept | Transparent Ready |
| Number of racks | 16 4/6/8 slots | 8 12 slots |
| Number of slots | 96 | 128 | 64 |
| Discrete I/O processor capacity | 1024 I/O |
| Analogue I/O processor capacity | 128 I/O |
| Number of application specific channel | 32 |
| Number of process control channel | 15 up to 45 simple loops |
| Integrated connection type | Ethernet TCP/IP RJ45 connector (10/100 Mbit/s) | Non isolated serial link 2 female mini DIN connector (19.2/115 kbit/s) |
| Communication module processor capacity | 1 fieldbus modules (1 if CANopen used) | 8 AS-Interface bus modules | 2 fieldbus | 2 network module |
| Memory description | Internal RAM (with PCMCIA card) 80 Kwords data | Internal RAM (without PCMCIA card) 64 Kwords program and data | PCMCIA card 2688 Kwords additional data storage | PCMCIA card 384 Kwords program |
| Maximum size of object areas | 16384 %Mi located internal bits | 30.5 %MWi internal words located internal data | 32 %KWi constant words located internal data |
| Application structure | 1 master task | 1 fast task | 64 event tasks |
| Execution time per instruction | 2.6 µs floating points with PCMCIA card | 0.12 µs Boolean without PCMCIA card | 0.17 µs Boolean with PCMCIA card | 0.17 µs word or fixed-point arithmetic without PCMCIA card | 0.33 µs word or fixed-point arithmetic with PCMCIA card | 2.5 µs floating points without PCMCIA card |
| Number of instructions per ms | 3.08 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card | 4.49 Kinst/ms 100 % Boolean with PCMCIA card | 4.7 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card | 6.57 Kinst/ms 100 % Boolean without PCMCIA card |
| System overhead | 0.29 ms for fast task | 1.15 ms for master task |
| Marking | CE |
| Local signalling | 1 LED (green) for Ethernet TCP/IP port ready (RUN) | 1 LED (green) for processor running (RUN) | 1 LED (red) for collision detection (COL) | 1 LED (red) for Ethernet TCP/IP port fault (ERR) | 1 LED (red) for I/O module or configuration fault (I/O) | 1 LED (red) for processor or system fault (ERR) | 1 LED (yellow) for activity on the terminal port (TER) | 1 LED (yellow) for Ethernet link diagnostics (STS) | 1 LED (yellow) for reception activity (RX) | 1 LED (yellow) for transmission activity (TX) |
| Current consumption | 1360 mA at 5 V DC |
| Module format | Double |
| Net weight | 0.76 kg |
| Standards | CSA C22.2 No 213 Class I Division 2 Group B | 89/336/EEC | CSA C22.2 No 213 Class I Division 2 Group C | UL 508 | CSA C22.2 No 142 | 93/68/EEC | 73/23/EEC | IEC 61131-2 | CSA C22.2 No 213 Class I Division 2 Group A | 92/31/EEC | CSA C22.2 No 213 Class I Division 2 Group D |
| Product certifications | RINA | BV | ABS | DNV | RMRS | GL | LR |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation | 5…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Protective treatment | TC |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 763.0 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 5.525 kg |
