Schneider Electric TSXP572634M

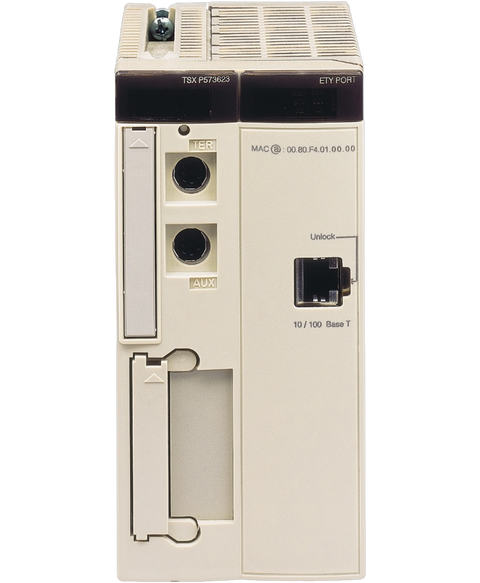

The TSXP572634M from Schneider Electric's TSX Micro PLCs series is tailored for sophisticated control tasks. It is equipped to manage both analog and discrete I,O with a capacity of up to 80 analog inputs and outputs and 1024 discrete I,O points, enabling a wide range of automation solutions.
This Schneider Electric TSXP572634M is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Modicon premium > Processors range and is referenced internally as PartLogic SKU PL26805673126.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Premium Automation platform |
| Product or component type | Unity processor |
| Software designation | Unity Pro |
| Concept | Transparent Ready |
| Number of racks | 16 4/6/8 slots | 8 12 slots |
| Number of slots | 128 | 96 | 64 |
| Discrete I/O processor capacity | 1024 I/O |
| Analogue I/O processor capacity | 80 I/O |
| Number of application specific channel | 24 |
| Number of process control channel | 10 up to 30 simple loops |
| Integrated connection type | Non isolated serial link 2 female mini DIN connector (RS485) (19.2 kbit/s) | Ethernet TCP/IP RJ45 connector |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Communication module processor capacity | 4 | 1 |
| Memory description | Internal RAM (with PCMCIA card) 160 kB data | Internal RAM (with PCMCIA card) 768 kB program | Internal RAM (without PCMCIA card) 160 kB program and data | PCMCIA card 16384 kB additional data storage |
| Maximum size of object areas | 64 %KWi constant words located internal data | 64 %MWi internal words located internal data | 64 kB (DFB and EFB function blocks) unlocated internal data | 64 kB (elementary and derived data) unlocated internal data | 8132 %Mi located internal bits |
| Application structure | 64 event tasks | 1 master task | 1 fast task |
| Execution time per instruction | 0.19 µs Boolean without PCMCIA card | 0.25 µs word or fixed-point arithmetic without PCMCIA card | 1.75...2.6 µs floating points with PCMCIA card | 1.75...2.6 µs floating points without PCMCIA card | 0.21 µs Boolean with PCMCIA card | 0.42 µs word or fixed-point arithmetic with PCMCIA card |
| Number of instructions per ms | 2.53 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card | 3.7 Kinst/ms 100 % Boolean with PCMCIA card | 3.71 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card | 4.76 Kinst/ms 100 % Boolean without PCMCIA card |
| System overhead | 0.3 ms for fast task | 1 ms for master task |
| Marking | CE |
| Local signalling | 1 LED (green) for Ethernet TCP/IP port ready (RUN) | 1 LED (green) for processor running (RUN) | 1 LED (red) for collision detection (COL) | 1 LED (red) for Ethernet TCP/IP port fault (ERR) | 1 LED (red) for I/O module or configuration fault (I/O) | 1 LED (red) for processor or system fault (ERR) | 1 LED (yellow) for activity on TER or AUX terminal port (TER) | 1 LED (yellow) for Ethernet link diagnostics (STS) | 1 LED (yellow) for reception activity (RX) | 1 LED (yellow) for transmission activity (TX) |
| Current consumption | 1650 mA at 5 V DC |
| Module format | Double |
| Net weight | 0.042 kg |
| Standards | CSA C22.2 No 213 Class I Division 2 Group B | IEC 61131-2 | 93/68/EEC | 89/336/EEC | UL 508 | 92/31/EEC | CSA C22.2 No 213 Class I Division 2 Group A | CSA C22.2 No 142 | CSA C22.2 No 213 Class I Division 2 Group D | CSA C22.2 No 213 Class I Division 2 Group C | 73/23/EEC |
| Product certifications | LR | BV | RMRS | GL | RINA | DNV | ABS |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation | 5…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Protective treatment | TC |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 734.0 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 5.351 kg |
