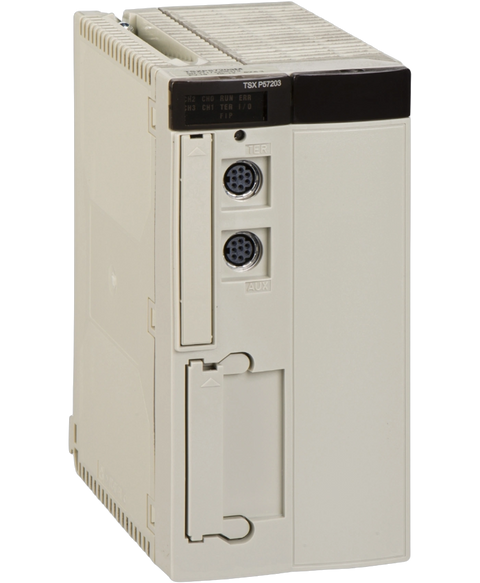

Schneider Electric TSXP57203M
The TSXP57203M from Schneider Electric is part of the TSX Micro PLC series. It features advanced processing capabilities, including a fast task overhead of 0.3 milliseconds and a master task overhead of 1 millisecond. This unit is designed for efficient program execution with a memory capacity of 224 KB when using a PCMCIA card.
This Schneider Electric TSXP57203M is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Modicon premium > Processors range and is referenced internally as PartLogic SKU PL26805552946.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Premium Automation platform |
| Product or component type | Double-format PL7 processor |
| Software designation | PL7 Junior/Pro |
| Number of racks | 16 4/6/8 slots | 8 12 slots |
| Number of slots | 96 | 64 | 128 |
| Discrete I/O processor capacity | 1024 I/O |
| Analogue I/O processor capacity | 80 I/O |
| Number of application specific channel | 24 |
| Number of process control channel | 10 up to 30 simple loops |
| Integrated connection type | Non isolated serial link 2 female mini DIN connector (19.2 kbit/s) |
| Communication module processor capacity | 1 fieldbus module (none if CANopen used) | 1 network module | 4 AS-Interface bus modules | 1 CANopen |
| Memory description | Internal RAM (with PCMCIA card) 48 Kwords data | Internal RAM (without PCMCIA card) 48 Kwords program and data | PCMCIA card 160 Kwords program | PCMCIA card 2688 Kwords additional data storage |
| Maximum size of object areas | 30.5 %MWi internal words located internal data | 32 %KWi constant words located internal data | 8132 %Mi located internal bits |
| Application structure | 1 fast task | 1 master task | 64 event tasks |
| Execution time per instruction | 0.19 µs Boolean without PCMCIA card | 0.21 µs Boolean with PCMCIA card | 0.25 µs word or fixed-point arithmetic without PCMCIA card | 0.42 µs word or fixed-point arithmetic with PCMCIA card | 2.6 µs floating points with PCMCIA card | 2.6 µs floating points without PCMCIA card |
| Number of instructions per ms | 2.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card | 3.57 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card | 3.7 Kinst/ms 100 % Boolean with PCMCIA card | 4.76 Kinst/ms 100 % Boolean without PCMCIA card |
| System overhead | 0.35 ms for fast task | 1 ms for master task |
| Marking | CE |
| Local signalling | 1 LED (green) for processor running (RUN) | 1 LED (red) for I/O module or configuration fault (I/O) | 1 LED (red) for processor or system fault (ERR) | 1 LED (yellow) for activity on the terminal port (TER) |
| Current consumption | 750 mA at 5 V DC |
| Module format | Double |
| Net weight | 0.52 kg |
| Standards | CSA C22.2 No 142 | UL 508 | CSA C22.2 No 213 Class I Division 2 Group A | IEC 61131-2 | 89/336/EEC | 73/23/EEC | CSA C22.2 No 213 Class I Division 2 Group C | 92/31/EEC | CSA C22.2 No 213 Class I Division 2 Group B | 93/68/EEC | CSA C22.2 No 213 Class I Division 2 Group D |
| Product certifications | LR | DNV | RMRS | GL | RINA | BV | ABS |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation | 5…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Protective treatment | TC |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 646.0 g |
