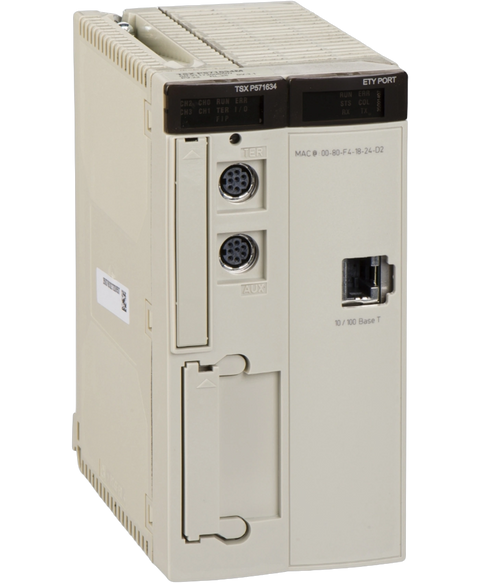

Schneider Electric TSXP571634M
The TSXP571634M is a communication module designed for Schneider Electric's TSX Micro PLCs series. This unit accommodates up to 2 communication module connections and supports multiple integrated connection types, including Ethernet TCP,IP via RJ45 and a serial link using 2 female mini-DIN RS485 interfaces.
This Schneider Electric TSXP571634M is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Modicon premium > Processors range and is referenced internally as PartLogic SKU PL26805536942.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Premium Automation platform |
| Product or component type | Unity processor |
| Software designation | Unity Pro |
| Number of racks | 2 12 slots | 4 4/6/8 slots |
| Number of slots | 24 | 16 | 32 |
| Discrete I/O processor capacity | 512 I/O |
| Analogue I/O processor capacity | 24 I/O |
| Number of application specific channel | 8 |
| Integrated connection type | Non isolated serial link 2 female mini DIN connector (RS485) (19.2 kbit/s) | Ethernet TCP/IP RJ45 connector |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Communication module processor capacity | 2 | 1 |
| Memory description | Internal RAM (with PCMCIA card) 224 kB program | Internal RAM (with PCMCIA card) 96 kB data | Internal RAM (without PCMCIA card) 96 kB program and data | PCMCIA card 256 kB additional data storage |
| Maximum size of object areas | 32 kB (elementary and derived data) unlocated internal data | 4096 %Mi located internal bits | 64 %KWi constant words located internal data | 64 %MWi internal words located internal data | 64 kB (DFB and EFB function blocks) unlocated internal data |
| Application structure | 1 master task | 1 fast task | 32 event tasks |
| Execution time per instruction | 0.19 µs Boolean without PCMCIA card | 0.25 µs Boolean with PCMCIA card | 0.25 µs word or fixed-point arithmetic without PCMCIA card | 0.5 µs word or fixed-point arithmetic with PCMCIA card | 1.75...2.6 µs floating points with PCMCIA card | 1.75...2.6 µs floating points without PCMCIA card |
| Number of instructions per ms | 2.1 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card | 3.1 Kinst/ms 100 % Boolean with PCMCIA card | 3.71 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card | 4.76 Kinst/ms 100 % Boolean without PCMCIA card |
| System overhead | 0.3 ms for fast task | 1 ms for master task |
| Marking | CE |
| Local signalling | 1 LED (green) for Ethernet TCP/IP port ready (RUN) | 1 LED (green) for processor running (RUN) | 1 LED (red) for collision detection (COL) | 1 LED (red) for Ethernet TCP/IP port fault (ERR) | 1 LED (red) for I/O module or configuration fault (I/O) | 1 LED (red) for processor or system fault (ERR) | 1 LED (yellow) for activity on TER or AUX terminal port (TER) | 1 LED (yellow) for Ethernet link diagnostics (STS) | 1 LED (yellow) for reception activity (RX) | 1 LED (yellow) for transmission activity (TX) |
| Current consumption | 1650 mA at 5 V DC |
| Module format | Double |
| Net weight | 0.74 kg |
| Standards | 89/336/EEC | CSA C22.2 No 213 Class I Division 2 Group A | UL 508 | CSA C22.2 No 213 Class I Division 2 Group D | 73/23/EEC | CSA C22.2 No 213 Class I Division 2 Group C | IEC 61131-2 | 93/68/EEC | 92/31/EEC | CSA C22.2 No 213 Class I Division 2 Group B | CSA C22.2 No 142 |
| Product certifications | GL | RMRS | LR | ABS | DNV | RINA | BV |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation | 5…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Protective treatment | TC |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 760.0 g |
