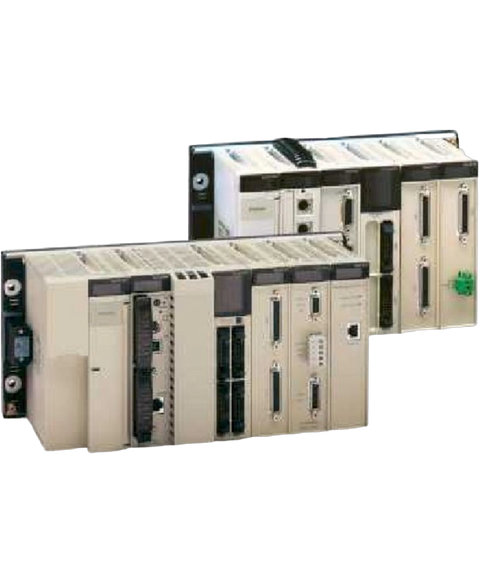

Schneider Electric TSXP57103M
The Schneider Electric TSXP57103M is a micro PLC that incorporates an internal RAM of 32 Kwords specifically designated for data processing. This module offers efficient inrush current capabilities, handling 38 A at both 240 V and 100 V. Designed with flexibility in mind, it can accommodate up to two racks supporting 12 slots or four racks with up to eight slots, making it suitable for various configurations.
This Schneider Electric TSXP57103M is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Modicon premium > Processors range and is referenced internally as PartLogic SKU PL26805634377.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Line | TSX Micro PLCs |
| Part Number | TSXP57103M |
| EAN | 3595862023825 |
| Weight | 1.00 lbs (0.45 kg) |
| Internal RAM | 32 Kwords data |
| Inrush Current | 38 A at 240 V / 38 A at 100 V |
| Number of Racks | 2 (12 slots), 4 (4/6/8 slots) |
| Discrete I/O Processor Capacity | 512 I/O |
| Analogue I/O Processor Capacity | 24 I/O |
| Integrated Connection Type | Non-isolated serial link, 2 female mini DIN, 19.2 kbit/s |
| Communication Module Processor Capacity | 1 network module, 2 AS-Interface bus modules, 1 CANopen |
| Memory Description | Internal RAM (with PCMCIA card) 32 Kwords data, Internal RAM (without PCMCIA card) 32 Kwords program and data |
| PCMCIA Card | 128 Kwords additional data storage, 64 Kwords program |
| Execution Time per Instruction | 0.5 µs Boolean without PCMCIA card, 0.6 µs Boolean with PCMCIA card |
| Number of Instructions per ms | 0.85 Kinst/ms (65% Boolean + 35% fixed arithmetic with PCMCIA card), 1.05 Kinst/ms (65% Boolean + 35% fixed arithmetic without PCMCIA card) |
| Local Signalling | 1 LED (green) for processor running (RUN), 1 LED (red) for I/O module or configuration fault (I/O), 1 LED (red) for processor or system fault (ERR), 1 LED (yellow) for activity on the terminal port (TER) |
| Current Consumption | 440 mA, 5 V DC |
| Module Format | Standard |
| Brand | Schneider Electric |
