Schneider Electric TSXISPY100

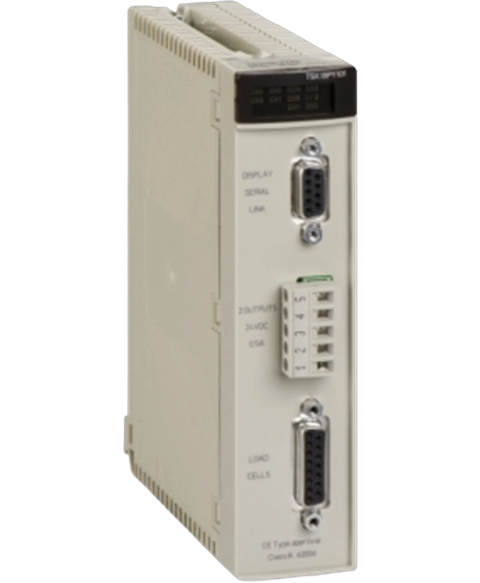

The TSXISPY100 from Schneider Electric is a versatile weighing module within the Modicon Premium series. It connects directly to load cells for precise weight measurements, offering a notable resolution of 20 bits, equivalent to over a million discrete points, and performs at a rate of 50 measurements per second.
This Schneider Electric TSXISPY100 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules range and is referenced internally as PartLogic SKU PL26805536383.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Line | Modicon Premium |
| Part Number | TSXISPY100 |
| Weight | 0.81 lbs (0.37 kg) |
| Measurement Channel | Connects to load cells to measure weight |
| Resolution | 20 bits (1,048,576 points) |
| Speed | 50 measurements/secs |
| Discrete Outputs | 2 high-speed outputs |
| Display Unit | Connects to external TSX XBT H100 display unit |
| Slot Occupancy | Fits in a PLC rack slot |
| Calibration | Includes functions for calibration, zero reset, semi-auto tare, zero tracking, and measurement freeze |
| Processor Communication | Provides data like weight, flow rate, stability, and status words |
| Physical Features | Plastic box, metal screening, connectors for load cells and display unit, and a screw terminal block |
| Power | 5V (0.75W typical, 1.65W max) and 24V (depends on the number of sensors) |
| Load Cell Connection | Uses a 15-pin Sub-D connector, powered by the module |
| Discrete Output Connection | Uses a screw terminal block with protection features |
| Display Unit Link | RS485 link with a 9-pin Sub-D connector, 9600 bauds speed |
| Display Power | Powered via a sealable Sub-D port, 18V-30V, 10W consumption |
| Brand | Schneider Electric |
