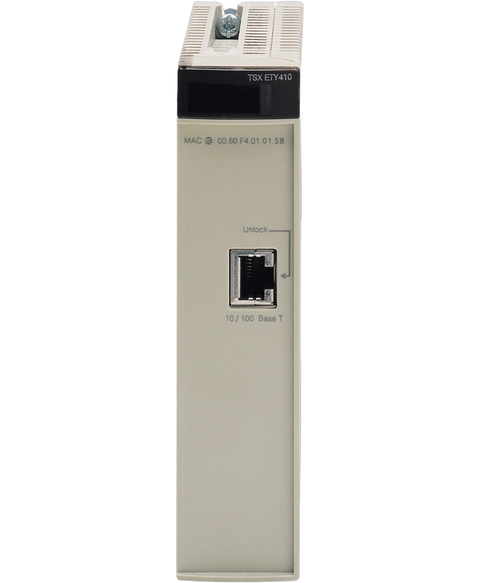

Schneider Electric TSXETY4103
The TSXETY4103 by Schneider Electric is designed as an Ethernet TCP,IP module, enabling effective communication within the TSX Micro PLCs series. It features a standard module format.
This Schneider Electric TSXETY4103 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules > Ethernet range and is referenced internally as PartLogic SKU PL26805315998.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Premium Automation platform |
| Product or component type | Ethernet TCP/IP module |
| Physical interface | RJ45 - 10BASE-T/100BASE-TX 1 twisted pair |
| Transmission rate | 10/100 Mbit/s |
| Communication service | Bandwidth management | FDR server | Global Data | I/O scanning | Modbus TCP messaging | SMTP e-mail notification | SNMP agent | Uni-TE messaging |
| Supply | Via the power supply of the rack |
| Local signalling | 1 LED for collision detection (COL) | 1 LED for Ethernet network status (RUN) | 1 LED for Ethernet port fault (ERR) | 1 LED for transmission/reception activity (TX/TR) |
| Communication port protocol | Modbus TCP | Uni-Telway |
| Maximum number of connections | 64 |
| Web server | Transparent ready class B30 |
| web feature | Rack viewer | Data Editor (via PC terminal) |
| Marking | CE |
| Product compatibility | PL7 Pro | Unity Pro |
| Current consumption | 360 mA 5 V DC |
| Module format | Standard |
| Net weight | 0.34 kg |
| Standards | CSA 1010-1 | FM Class 1 Division 2 group A | FM Class 1 Division 2 group C | FM Class 1 Division 2 group B | FM Class 1 Division 2 group D | EN 61131-2 | UL 508 |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 10…95 % at 60 °C without condensation |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 426.0 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 5.991 kg |
