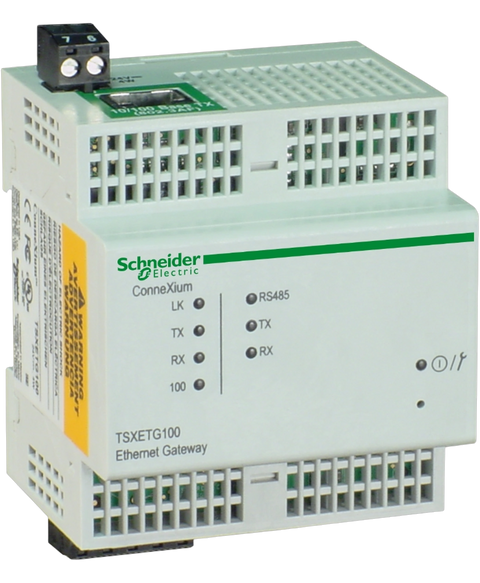

Schneider Electric TSXETG100
The TSXETG100 module is a part of Schneider Electric's TSX Micro PLCs series. It operates with a rated supply voltage of 24 V DC and supports several Ethernet protocols, including Modbus TCP,IP and HTTP. The unit also facilitates serial communication through Modbus RTU and ASCII protocols, enabling flexible connectivity options for industrial applications.
This Schneider Electric TSXETG100 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules > Ethernet range and is referenced internally as PartLogic SKU PL26805316537.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | ConneXium |
| Product or component type | Ethernet Modbus gateway/router |
| Product destination | All products compatible with Modbus standard |
| Concept | Transparent Ready |
| Web server | Class B10 |
| [Us] rated supply voltage | 24 V DC |
| Web services | Via predefined web pages : diagnostic on Ethernet and Modbus links | Predefined web pages | Access to connected products list, reading of Modbus devices registers |
| Communication service | SNMP agent, device administration with a SNMP manager | Read/write Modbus registers of connected devices | Miniature firewall on-board (IP address filtering) and password protection | BOOTP protocol, FDR client |
| Supply | Power supply device PoE conforming to IEEE 802.3af |
| Integrated connection type | Ethernet TCP/IP RJ45 10/100 Mbps 1 twisted pair | Serial link 5-way removable terminal block Modbus RTU and ASCII RS485 57.6 kbps | Serial link micro switches Modbus RTU and ASCII RS485 57.6 kbps | Serial link RJ45 RS232 38.4 kbps |
| Maximum number of connected devices | Modbus serial link: 32 |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Mounting support | Symmetrical DIN rail |
| Marking | CE |
| Local signalling | 3 LEDs for serial link communication (RS485, RX, TX) | 4 LEDs for Ethernet communication (LK, RX, TX, 100) |
| Width | 72 mm |
| Height | 81 mm |
| Depth | 76 mm |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % at 40 °C without condensation |
| IP degree of protection | IP30 |
| Standards | EN 61000-4-2/3/4/5/6/8 | UL 508 | CSA C22.2 No 14-M91 | EN 55022 FCC class A | EN 61000-6-2 |
| Product certifications | cUL | UL |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
