Schneider Electric TSXDSZ32R5

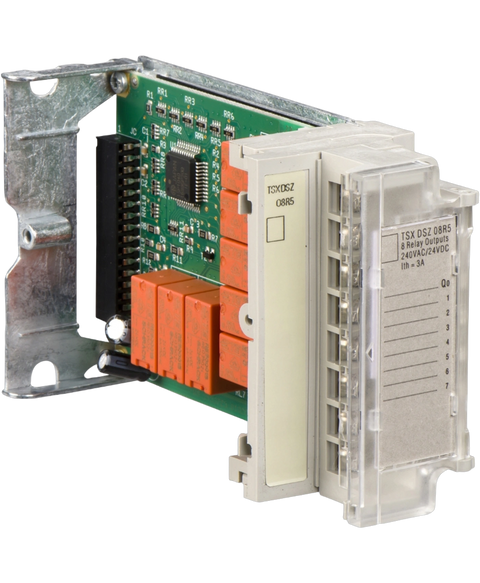

The Schneider Electric TSXDSZ32R5 serves as a discrete relay output unit within the TSX Micro PLCs series. It offers a total of 32 output channels and is compatible with both AC and DC voltage inputs.
This Schneider Electric TSXDSZ32R5 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output range and is referenced internally as PartLogic SKU PL26805669542.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Relay discrete output module |
| Discrete output number | 32 screw terminal block |
| Contacts type and composition | NO |
| Output voltage limits | 19...264 V AC | 10...34 V DC |
| [Ith] conventional free air thermal current | 2 A |
| Power consumption in VA | 50 VA 24 V AC-12 resistive | 24 VA 24 V AC-15 inductive | 100 VA 48 V AC-12 resistive | 200 VA 110...120 V AC-12 resistive | 200 VA 200...240 V AC-12 resistive | 50 VA 48 V AC-15 inductive | 50 VA 110...120 V AC-15 inductive | 50 VA 200...240 V AC-15 inductive |
| Power consumption in W | 24 V DC-13 inductive | 24 V DC-12 resistive |
| Response time | < 10 ms |
| Current consumption | 175 mA |
| Power dissipation in W | 3.5 W |
| Isolation voltage | 1500 V for 1 s |
| Insulation resistance | >= 10 mOhm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 641.0 g |
