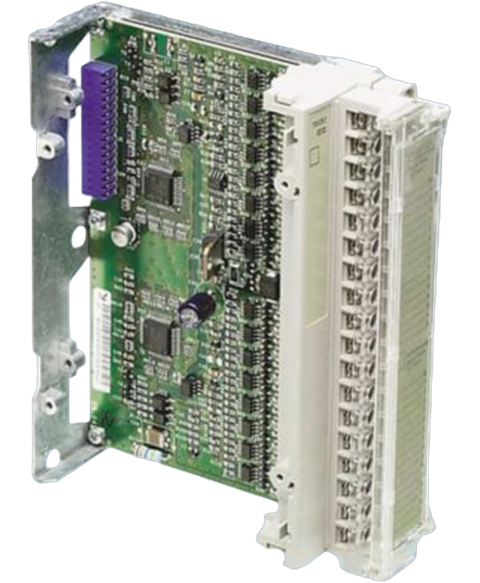

Schneider Electric TSXDSZ08T2
The TSXDSZ08T2 discrete output module from Schneider Electric is designed for solid-state operation, with each of its eight outputs capable of delivering 24 VDC power. This module ensures compatibility with various automation systems and provides reliable performance under specified conditions.
This Schneider Electric TSXDSZ08T2 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output range and is referenced internally as PartLogic SKU PL26805316281.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Type | Discrete Output Module |
| Product Line | Modicon |
| Part Number | TSXDSZ08T2 |
| EAN | 3389110540505 |
| Weight | 0.50 lbs (0.23 kg) |
| Output Type | Solid State |
| Output Voltage | 24 VDC |
| Current Consumption | 38 mA |
| Number of Outputs | 8 |
| Output Protection | Zener diode, current limiter |
| Power Dissipation (Per Channel) | 0.15 W |
| Output Current per Channel | 0.5 mA |
| Power Dissipation (Total) | 3.5 W |
| Reverse Polarity Protection | Yes (diode) |
| Isolation Voltage | 1500 V for 1 s |
| Short-Circuit Protection | Yes |
| Paralleling of Outputs | Up to 2 channels |
| Brand | Schneider Electric |
