Schneider Electric TSXDSZ08R5

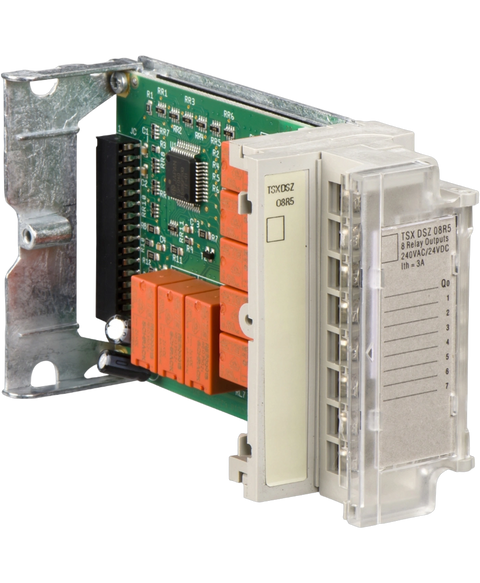

The TSXDSZ08R5 model from Schneider Electric is a discrete output relay module designed to integrate with the Modicon TSX Micro automation platform. This module accommodates up to eight outputs, and is specifically designed to handle a wide range of voltage limits from 19 to 264 V AC and 10 to 34 V DC.
This Schneider Electric TSXDSZ08R5 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output range and is referenced internally as PartLogic SKU PL26805613978.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Relay discrete output module |
| Discrete output number | 8 screw terminal block |
| Contacts type and composition | NO |
| Output voltage limits | 19...264 V AC | 10...34 V DC |
| [Ith] conventional free air thermal current | 3 A |
| Power consumption in VA | 50 VA 24 V AC-12 resistive | 110 VA 48 V AC-12 resistive | 220 VA 110 V AC-12 resistive | 220 VA 220 V AC-12 resistive | 24 VA 24 V AC-15 inductive | 24 VA 48 V AC-15 inductive | 220 VA 220 V AC-15 inductive | 110 VA 110 V AC-15 inductive |
| Power consumption in W | 24 V DC-12 resistive | 24 V DC-13 inductive |
| Response time | < 10 ms |
| Current consumption | 85 mA |
| Power dissipation in W | 1.5 W |
| Isolation voltage | 1500 V for 1 s |
| Insulation resistance | >= 10 mOhm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 361.0 g |
